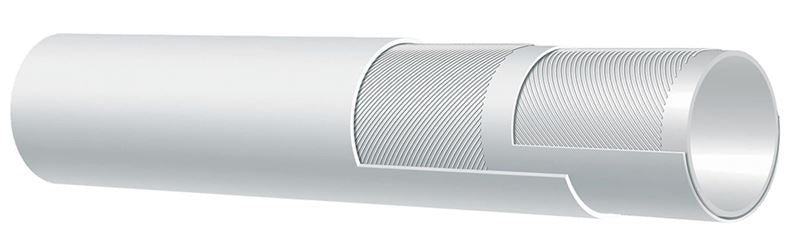

T350LL100X200 Alfagomma by Kuriyama | T350LL Series | Premium Paper Mill/Creamery Wash Down Hot Water Hose | No Nozzle | 1" ID | 1.46" OD | 225 PSI | White | 200ft

T350LL100X200 Alfagomma by Kuriyama | T350LL Series | Premium Paper Mill/Creamery Wash Down Hot Water Hose | No Nozzle | 1" ID | 1.46" OD | 225 PSI | White | 200ft Length

Save $406.51 Save $406.51
$1,537.39
$1,537.39 - $1,537.39
$1,537.39
$1,130.88
$1,130.88 - $1,130.88
$1,130.88

Kuriyama of America Inc.
Alfagomma | T350LL / T350LH Series | 225 PSI Premium Paper Mill/Creamery Wash Down Hose - No Nozzle

For general wash down service, using hot water or low pressure saturated steam in processing plants and facilities and in food and dairy plants.

Package Quantity: 200 Foot

Specifications for Variant SKU: T350LL100X200 Kuriyama | 200 |
Brand: Alfagomma
Series: T350LL Series
Hose Color(s): White
Internal Diameter: 1in
Outer Diameter: 1.46in
Tubing Construction: EPDM
Cover Construction: EPDM
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements

SPECIFICATIONS

Application: General washdown service, Hot water cleaning, Low-pressure saturated steam use, Processing plants and facilities, Food and dairy plants. SAE Rating: -
Other Ratings: Meets FDA and 3A (18-03) requirements. Tube: White EPDM.
Reinforcement: High tensile textile cords. Cover: Red or White EPDM - heat, abrasion and ozone resistant.
Working Pressure: Constant Pressure - 15 Bar (225 PSI) Steam Pressure: Constant Pressure - 6 Bar (90 PSI)
Service Temperature Range: Water -40°F (-40°C) to +248°F (+120°C)
Steam +330°F to (+165°C)		 Coupling Suggestions: Short shank, long shank couplings (NPT, GHT), barbed inserts attached with bands.
Branding: ALFAGOMMA - ITALY - T350 6 BAR (90 PSI) STEAM 15 BAR (225 PSI) HOT WATER (embossed)
Part Number
200ft		 Cover Color ID OD Max Rec.
Working Pressure		 Weight
(in) (mm) (in) (mm) PSI lbs/ft
T350LL050X200 White 1/2" 13mm 0.91" 23mm 225 psi 0.27 lbs/ft
T350LL062X200 White 5/8" 16mm 1.02" 26mm 225 psi 0.31 lbs/ft
T350LL075X200 White 3/4" 19mm 1.22" 31mm 225 psi 0.44 lbs/ft
T350LL100X200 White 1" 25mm 1.46" 37mm 225 psi 0.54 lbs/ft
T350LL125X200 White 1-1/4" 32mm 1.81" 46mm 225 psi 0.63 lbs/ft
T350LL150X200 White 1-1/2" 38mm 2.05" 52mm 225 psi 0.74 lbs/ft
T350LH075X200 Red 3/4" 19mm 1.22" 31mm 225 psi 0.44 lbs/ft
T350LH100X200 Red 1" 25mm 1.46" 37mm 225 psi 0.54 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
