T400LB200X100 Alfagomma by Kuriyama | T400LB Evolution Series | FDA Multi Food Suction & Discharge Hose | 2" ID | 2.48" OD | 150 PSI | Grey | 100ft Length

Save $606.18

$1,760.99

$1,760.99 - $1,760.99

$1,760.99

$1,154.81

$1,154.81 - $1,154.81

$1,154.81

Kuriyama of America Inc.
Alfagomma | T400LB Evolution Series | Multi Food Suction & Discharge Hose

For liquid food suction and discharge, including alcoholic beverages, milk transfer, animal fats and vegetable oils.

(Replaces T405LB Series Hose)

Package Quantity: 100 Foot

Specifications for Variant SKU: T400LB200X100 Kuriyama \| 100 \|
Brand:	Alfagomma
Series:	T400LB Series
Hose Color(s):	Grey
Internal Diameter:	2in
Outer Diameter:	2.48in
Tubing Construction:	Nitrile
Cover Construction:	Nitrile/PVC Blend
Applicable Specs & Approvals:	Applicable FDA Standards, Applicable 3-A Sanitary Standards
Special Properties:	Food Grade

SPECIFICATIONS

Application:	- Liquid food suction and discharge. - Alcoholic beverages - wine, beer & spirits up to 75% alcohol content and 150 proof. - Milk tanker collection & unloading-ideal for reel applications - Hot food-constant operations: liquid food up to 230° F (110° C), fat foods up to 248° F (120° C) - Fat foods-perfect for animal fats and any vegetable oils - Hose may be sterilized with 266° F (130° C) steam for 30 minutes or with 5% soda solution.
Other Ratings:	Compliant to FDA and 3A standards.	Tube:	White NBR rubber specially compounded to satisfy the highest food industry standards. Compliant to FDA and 3A standards. Phthalate free.

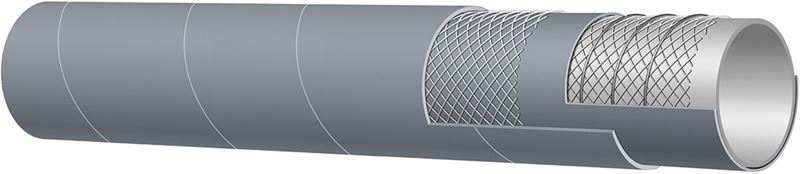

Reinforcement:	High tensile textile cords with embedded steel helix wire.	Cover:	Grey NBR/PVC abrasion, weather & ozone resistant.
Service Temperature Range:	Liquid foods: -22° F (-30° C) to +230° F (+110° C) Fat foods: -22° F (-30° C) to +248° F (+120° C)	Coupling Suggestions:	Quick-Acting or combination nipples attached with single bolt, double bolt, wire or band type clamps.
Branding:	AG -ITALY- 400 EVOLUTION 10 bar (150 psi) MULTI FOOD S&D 110 °C (230°F) FDA 3-A (food symbol)

Part Number 50ft	Part Number 100ft	ID		OD		Max Rec. Working Pressure	Vacuum	Min. Bend Radius at 68°F	Weight
Part Number 50ft	Part Number 100ft	(in)	(mm)	(in)	(mm)	PSI	in Hg	(in)	lbs/ft
-	T400LB125X100	1-1/4"	32mm	1.69"	43mm	150 PSI	30 in Hg	2-1/2"	0.68 lbs/ft
T400LB150X50	T400LB150X100	1-1/2"	38mm	1.93"	49mm	150 PSI	30 in Hg	3"	0.79 lbs/ft
T400LB200X50	T400LB200X100	2"	51mm	2.48"	63mm	150 PSI	30 in Hg	4"	1.07 lbs/ft
T400LB250X50	T400LB250X100	2-1/2"	63mm	2.99"	76mm	150 PSI	27 in Hg	5"	1.61 lbs/ft
T400LB300X50	T400LB300X100	3"	76mm	3.50"	89mm	150 PSI	27 in Hg	6"	1.94 lbs/ft
T400LB400X50	T400LB400X100	4"	102mm	4.57"	116mm	150 PSI	27 in Hg	8"	2.63 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
