T400LB400X50 Alfagomma by Kuriyama | T400LB Evolution Series | FDA Multi Food Suction & Discharge Hose | 4" ID | 4.57" OD | 150 PSI | Grey | 50ft Length

T400LB400X50 Alfagomma by Kuriyama | T400LB Evolution Series | FDA Multi Food Suction & Discharge Hose | 4" ID | 4.57" OD | 150 PSI | Grey | 50ft Length

Save $613.20 Save $613.20
$1,806.78
$1,806.78 - $1,806.78
$1,806.78
$1,193.58
$1,193.58 - $1,193.58
$1,193.58

Kuriyama of America Inc.
Alfagomma | T400LB Evolution Series | Multi Food Suction & Discharge Hose

For liquid food suction and discharge, including alcoholic beverages, milk transfer, animal fats and vegetable oils.

(Replaces T405LB Series Hose)

Package Quantity: 50 Foot

Specifications for Variant SKU: T400LB400X50 Kuriyama | 50 |
Brand: Alfagomma
Series: T400LB Series
Hose Color(s): Grey
Internal Diameter: 4in
Outer Diameter: 4.57in
Tubing Construction: Nitrile
Cover Construction: Nitrile/PVC Blend
Applicable Specs & Approvals: Applicable FDA Standards, Applicable 3-A Sanitary Standards
Special Properties: Food Grade

SPECIFICATIONS

Application: - Liquid food suction and discharge.
- Alcoholic beverages - wine, beer & spirits up to 75% alcohol content and 150 proof.
- Milk tanker collection & unloading-ideal for reel applications
- Hot food-constant operations: liquid food up to 230° F (110° C), fat foods up to 248° F (120° C)
- Fat foods-perfect for animal fats and any vegetable oils
- Hose may be sterilized with 266° F (130° C) steam for 30 minutes or with 5% soda solution.
Other Ratings: Compliant to FDA and 3A standards. Tube: White NBR rubber specially compounded to satisfy the highest food industry standards. Compliant to FDA and 3A standards. Phthalate free.

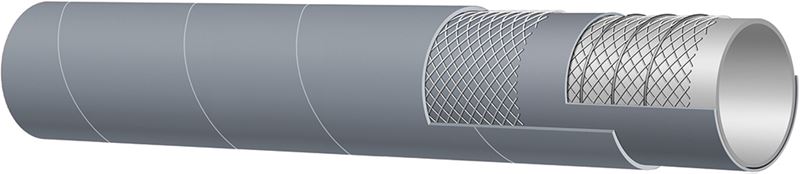

Reinforcement: High tensile textile cords with embedded steel helix wire. Cover: Grey NBR/PVC abrasion, weather & ozone resistant.
Service Temperature Range: Liquid foods: -22° F (-30° C) to +230° F (+110° C)
Fat foods: -22° F (-30° C) to +248° F (+120° C)		 Coupling Suggestions: Quick-Acting or combination nipples attached with single bolt, double bolt, wire or band type clamps.
Branding: AG -ITALY- 400 EVOLUTION 10 bar (150 psi) MULTI FOOD S&D 110 °C (230°F) FDA 3-A (food symbol)
Part Number
50ft		 Part Number
100ft		 ID OD Max Rec.
Working
Pressure		 Vacuum Min. Bend
Radius
at 68°F		 Weight
(in) (mm) (in) (mm) PSI in Hg (in) lbs/ft
- T400LB125X100 1-1/4" 32mm 1.69" 43mm 150 PSI 30 in Hg 2-1/2" 0.68 lbs/ft
T400LB150X50 T400LB150X100 1-1/2" 38mm 1.93" 49mm 150 PSI 30 in Hg 3" 0.79 lbs/ft
T400LB200X50 T400LB200X100 2" 51mm 2.48" 63mm 150 PSI 30 in Hg 4" 1.07 lbs/ft
T400LB250X50 T400LB250X100 2-1/2" 63mm 2.99" 76mm 150 PSI 27 in Hg 5" 1.61 lbs/ft
T400LB300X50 T400LB300X100 3" 76mm 3.50" 89mm 150 PSI 27 in Hg 6" 1.94 lbs/ft
T400LB400X50 T400LB400X100 4" 102mm 4.57" 116mm 150 PSI 27 in Hg 8" 2.63 lbs/ft
