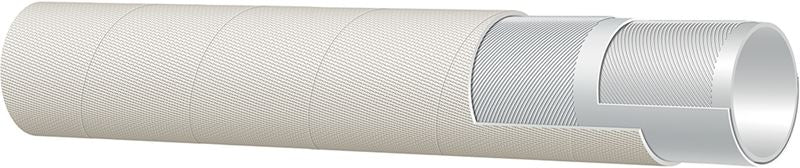

T957LL075X100 Alfagomma by Kuriyama | T957LL Series | Furnace Door Coolant Hose | 3/4" ID | 1.22" OD | 300 PSI | Beige | 100ft Length

T957LL075X100 Alfagomma by Kuriyama | T957LL Series | Furnace Door Coolant Hose | 3/4" ID | 1.22" OD | 300 PSI | Beige | 100ft Length

Save $209.68 Save $209.68
$951.25
$951.25 - $951.25
$951.25
$741.57
$741.57 - $741.57
$741.57

Kuriyama of America Inc.
Alfagomma | T146AK Series | Braided MSHA Mine Spray Hose

Used to convey cooling water to furnace doors in steel mills, glass plants, foundries, or where the hose is subjected to high temperatures and splashes of white-hot molten metals or glass.

Package Quantity: 100 Foot

Specifications for Variant SKU: T957LL075X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T957LL Series
Hose Color(s): Beige
Internal Diameter: 0.75in - 3/4in
Outer Diameter: 1.22in
Tubing Construction: EPDM
Cover Construction: EPDM

SPECIFICATIONS

Application: To convey cooling water to furnace doors in steel mills, glass plants, foundries, or where the hose is subjected to high temperatures and splashes of white-hot molten metals or glass.
Other Ratings: - Tube: White EPDM.
Reinforcement: High tensile textile cords. Cover: Beige EPDM - heat resistant, nonconductive resin-coated dust-free fiberglass cover.
Service Temperature Range: Tube: -40°F (-40°C) to +248°F (+120°C)
Cover: -40°F (-40°C) to +1000°F (up to +540°C)		 Coupling Suggestions: -
Branding: -
Part Number
100ft		 ID OD Max Rec.
Working
Pressure		 Weight
(in) (mm) (in) (mm) PSI lbs/ft
T957LL050X100 1/2" 13mm 0.98" 25mm 300 PSI 0.30 lbs/ft
T957LL075X100 3/4" 19mm 1.22" 31mm 300 PSI 0.46 lbs/ft
T957LL100X100 1" 25mm 1.46" 37mm 300 PSI 0.56 lbs/ft
T957LL125X100 1-1/4" 32mm 1.81" 46mm 300 PSI 0.82 lbs/ft
T957LL150X100 1-1/2" 38mm 2.13" 54mm 300 PSI 0.98 lbs/ft
T957LL200X100 2" 51mm 2.64" 67mm 300 PSI 1.26 lbs/ft
T957LL250X100 2-1/2" 63mm 3.19" 81mm 300 PSI 1.55 lbs/ft
T957LL300X100 3" 76mm 3.78" 96mm 300 PSI 2.15 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
