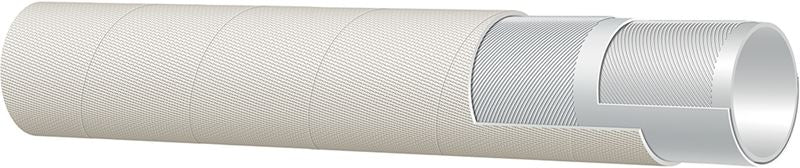

T957LL100X100 Alfagomma by Kuriyama | T957LL Series | Furnace Door Coolant Hose | 1" ID | 1.46" OD | 300 PSI | Beige | 100ft Length

T957LL100X100 Alfagomma by Kuriyama | T957LL Series | Furnace Door Coolant Hose | 1" ID | 1.46" OD | 300 PSI | Beige | 100ft Length

Save $241.44 Save $241.44
$1,088.45
$1,088.45 - $1,088.45
$1,088.45
$847.01
$847.01 - $847.01
$847.01

Kuriyama of America Inc.
Alfagomma | T146AK Series | Braided MSHA Mine Spray Hose

Used to convey cooling water to furnace doors in steel mills, glass plants, foundries, or where the hose is subjected to high temperatures and splashes of white-hot molten metals or glass.

Package Quantity: 100 Foot

Specifications for Variant SKU: T957LL100X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T957LL Series
Hose Color(s): Beige
Internal Diameter: 1in
Outer Diameter: 1.46in
Tubing Construction: EPDM
Cover Construction: EPDM

SPECIFICATIONS

Application: To convey cooling water to furnace doors in steel mills, glass plants, foundries, or where the hose is subjected to high temperatures and splashes of white-hot molten metals or glass.
Other Ratings: - Tube: White EPDM.
Reinforcement: High tensile textile cords. Cover: Beige EPDM - heat resistant, nonconductive resin-coated dust-free fiberglass cover.
Service Temperature Range: Tube: -40°F (-40°C) to +248°F (+120°C)
Cover: -40°F (-40°C) to +1000°F (up to +540°C)		 Coupling Suggestions: -
Branding: -
Part Number
100ft		 ID OD Max Rec.
Working
Pressure		 Weight
(in) (mm) (in) (mm) PSI lbs/ft
T957LL050X100 1/2" 13mm 0.98" 25mm 300 PSI 0.30 lbs/ft
T957LL075X100 3/4" 19mm 1.22" 31mm 300 PSI 0.46 lbs/ft
T957LL100X100 1" 25mm 1.46" 37mm 300 PSI 0.56 lbs/ft
T957LL125X100 1-1/4" 32mm 1.81" 46mm 300 PSI 0.82 lbs/ft
T957LL150X100 1-1/2" 38mm 2.13" 54mm 300 PSI 0.98 lbs/ft
T957LL200X100 2" 51mm 2.64" 67mm 300 PSI 1.26 lbs/ft
T957LL250X100 2-1/2" 63mm 3.19" 81mm 300 PSI 1.55 lbs/ft
T957LL300X100 3" 76mm 3.78" 96mm 300 PSI 2.15 lbs/ft
