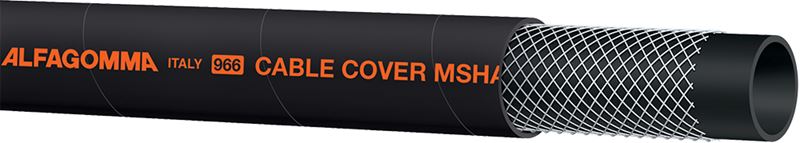

T966AA150X100 Alfagomma by Kuriyama | T966AA Series | Cable Protection Hose | 1-1/2" ID | 1.89" OD | 75 PSI | Black | 100ft Length

T966AA150X100 Alfagomma by Kuriyama | T966AA Series | Cable Protection Hose | 1-1/2" ID | 1.89" OD | 75 PSI | Black | 100ft Length

Save $139.92 Save $139.92
$756.65
$756.65 - $756.65
$756.65
$616.73
$616.73 - $616.73
$616.73

Kuriyama of America Inc.
Alfagomma | T966AA Series | Cable Protection Hose

Designed for cable protection in underground mining operations. Also suitable for light duty air and water applications up to 75 psi working pressures.

Package Quantity: 100 Foot

Specifications for Variant SKU: T966AA150X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T966AA Series
Hose Color(s): Black
Internal Diameter: 1.50in - 1-1/2in
Outer Diameter: 1.89in
Tubing Construction: SBR/Nitrile Blend
Cover Construction: SBR
Applicable Specs & Approvals: MSHA IC-152/23
Special Properties: Conductive Tube, Conductive Hose Cover

SPECIFICATIONS

Applications: Cable protection in underground mining operations. Also suitable for light duty air and water applications up to 75 psi working pressures.
Other Ratings: MSHA Accepted - Hose is accepted as having met the Interim Fire Criteria Acceptance of Products Taken Into Underground Mines per MSHA IC-152/23 Tube: Black conductive SBR/NR blend.
Reinforcement: High tensile textile cords with 4 spiral reinforcement. Cover: Black conductive SBR compounds providing abrasion, ozone and flame resistance.
Service Temperature Range: -22°F (-30°C) to +176 °F (+80°C) Coupling Suggestions: Tubular steel full flow male permanently swaged or internally expanded with ferrule to provide maximum hose coupling compatibility.
Branding: ALFAGOMMA ITALY 966 CABLE COVER MSHA IC-152/23 5 bar (75 psi) (in orange letters)
Other Features:
  • Comprehensive Size Range - Nine available sizes to accommodate a wide range of hose and cable sizes.
  • MSHA Accepted - Hose is accepted as having met the Interim Fire Criteria Acceptance of Products Taken Into Underground Mines per MSHA IC-152/23.
Part Number ID OD Max Rec.
Working Pressure		 Min.
Bend Radius
at 68°F		 Weight
(in) (mm) (in) (mm) PSI (in) (lbs/ft)
T966AA050X100 1/2" 13mm 0.83" 21mm 75 PSI 4" 0.17 lbs/ft
T966AA062X100 5/8" 16mm 0.94" 26mm 75 PSI 5" 0.19 lbs/ft
T966AA075X100 3/4" 19mm 1.14" 29mm 75 PSI 6" 0.28 lbs/ft
T966AA100X100 1" 25mm 1.38" 35mm 75 PSI 8" 0.35 lbs/ft
T966AA125X100 1-1/4" 32mm 1.65" 42mm 75 PSI 10" 0.43 lbs/ft
T966AA150X100 1-1/2" 38mm 1.89" 48mm 75 PSI 15" 0.50 lbs/ft
T966AA175X100 1-3/4" 45mm 2.17" 55mm 75 PSI 18" 0.58 lbs/ft
T966AA200X100 2" 51mm 2.40" 61mm 75 PSI 20" 0.65 lbs/ft
T966AA250X100 2-1/2" 63mm 2.87" 73mm 75 PSI 25" 0.82 lbs/ft
