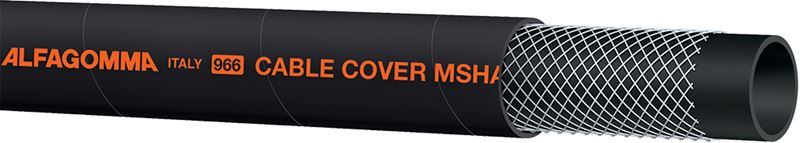

T966AA250X100 Alfagomma by Kuriyama | T966AA Series | Cable Protection Hose | 2-1/2" ID | 2.87" OD | 75 PSI | Black | 100ft Length

Save $560.67

$1,468.68

$1,468.68 - $1,468.68

$1,468.68

$908.01

$908.01 - $908.01

$908.01

Kuriyama of America Inc.
Alfagomma | T966AA Series | Cable Protection Hose

Designed for cable protection in underground mining operations. Also suitable for light duty air and water applications up to 75 psi working pressures.

Package Quantity: 100 Foot

Specifications for Variant SKU: T966AA250X100 Kuriyama \| 100 \|
Brand:	Alfagomma
Series:	T966AA Series
Hose Color(s):	Black
Internal Diameter:	2.50in - 2-1/2in
Outer Diameter:	2.87in
Tubing Construction:	SBR/Nitrile Blend
Cover Construction:	SBR
Applicable Specs & Approvals:	MSHA IC-152/23
Special Properties:	Conductive Tube, Conductive Hose Cover

SPECIFICATIONS

Other Features:
Applications:	Cable protection in underground mining operations. Also suitable for light duty air and water applications up to 75 psi working pressures.
Other Ratings:	MSHA Accepted - Hose is accepted as having met the Interim Fire Criteria Acceptance of Products Taken Into Underground Mines per MSHA IC-152/23	Tube:	Black conductive SBR/NR blend.
Reinforcement:	High tensile textile cords with 4 spiral reinforcement.	Cover:	Black conductive SBR compounds providing abrasion, ozone and flame resistance.
Service Temperature Range:	-22°F (-30°C) to +176 °F (+80°C)	Coupling Suggestions:	Tubular steel full flow male permanently swaged or internally expanded with ferrule to provide maximum hose coupling compatibility.
Branding:	ALFAGOMMA ITALY 966 CABLE COVER MSHA IC-152/23 5 bar (75 psi) (in orange letters)
Comprehensive Size Range - Nine available sizes to accommodate a wide range of hose and cable sizes. MSHA Accepted - Hose is accepted as having met the Interim Fire Criteria Acceptance of Products Taken Into Underground Mines per MSHA IC-152/23.

Part Number	ID		OD		Max Rec. Working Pressure	Min. Bend Radius at 68°F	Weight
Part Number	(in)	(mm)	(in)	(mm)	PSI	(in)	(lbs/ft)
T966AA050X100	1/2"	13mm	0.83"	21mm	75 PSI	4"	0.17 lbs/ft
T966AA062X100	5/8"	16mm	0.94"	26mm	75 PSI	5"	0.19 lbs/ft
T966AA075X100	3/4"	19mm	1.14"	29mm	75 PSI	6"	0.28 lbs/ft
T966AA100X100	1"	25mm	1.38"	35mm	75 PSI	8"	0.35 lbs/ft
T966AA125X100	1-1/4"	32mm	1.65"	42mm	75 PSI	10"	0.43 lbs/ft
T966AA150X100	1-1/2"	38mm	1.89"	48mm	75 PSI	15"	0.50 lbs/ft
T966AA175X100	1-3/4"	45mm	2.17"	55mm	75 PSI	18"	0.58 lbs/ft
T966AA200X100	2"	51mm	2.40"	61mm	75 PSI	20"	0.65 lbs/ft
T966AA250X100	2-1/2"	63mm	2.87"	73mm	75 PSI	25"	0.82 lbs/ft
