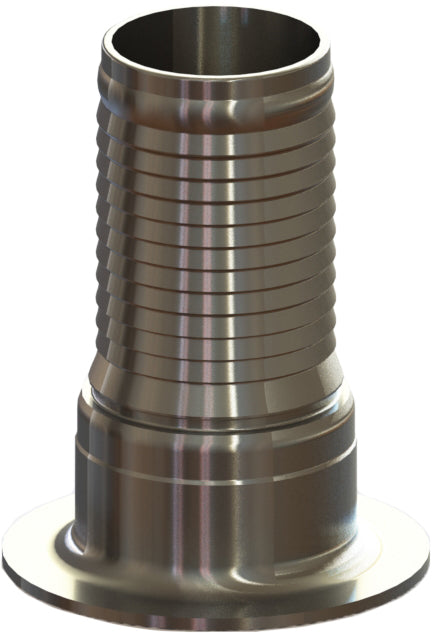

THASS-12C by Campbell Fittings | Flange Turnback | 3" Turnback x 3" Hose Barb | 316 Stainless Steel

THASS-12C by Campbell Fittings | Flange Turnback | 3" Turnback x 3" Hose Barb | 316 Stainless Steel

Save $41.34 Save $41.34
$323.47
$323.47 - $323.47
$323.47
$282.13
$282.13 - $282.13
$282.13

by Campbell
Crimpnology Nipple:THASS Turnback (for use with 150lb. floating flange)
Specifications for Variant SKU: THASS-12C Campbell Fittings
Series: THASS Series
Shape (Orientation): Straight
Ends Configuration: 3in Flange Stub, 3in Hose Barb
Material(s): 316 Stainless Steel
Recommended Use:
  • Multi-purpose fluid, chemical, bulk handling
Recommended Hose Attachments:
  • Interlocking ferrules
Features and Benefits:
  • Designed for use with Campbell Interlocking Ferrules.
  • Fittings use the same ferrules as Campbell COBRA Parts C and E, Chemjoint Couplings, and Goodyear InstaLock Cam and Grove Couplings to keep ferrule inventory low and flexible.
  • Interlock groove on fitting locks ferrule into place for the ultimate in holding power
  • Graduated serration pattern (sharper near the interlock, rounder near the end, with smooth end detail to reduce potential failures caused by abrasion) grips, seals and protects hose.
  • Shank and ferrule lengths are matched for performance and to avoid potential hose tube or cover damage.
  • Crimped assemblies are low profile and eliminate sharp edges from clamp buckles.
Recommended Hose Attachments:
  • Crimpnology Nipples provide an excellent fitting solution for medium-pressure applications such as "Frac Hose", mud pump hose, and other abusive applications
Part Number Hose Size
THASS-4C 1"
THASS-6C 1-1/2"
THASS-8C 2"
THASS-10C 2-1/2"
THASS-12C 3"
THASS-16C 4"
THASS-24C 6"
THASS-32C 8"
