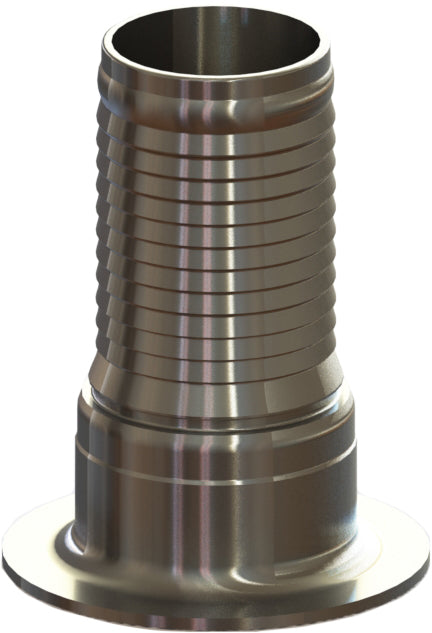

THASS-24C by Campbell Fittings | Flange Turnback | 6" Turnback x 6" Hose Barb | 316 Stainless Steel

Name: THASS-24C by Campbell Fittings | Flange Turnback | 6" Turnback x 6" Hose Barb | 316 Stainless Steel
Brand: Campbell Fittings
SKU: THASS-24C Campbell Fittings
Price: 824.48 USD
Availability: InStock

Save $189.36

$1,013.84

$1,013.84 - $1,013.84

$1,013.84

$824.48

$824.48 - $824.48

$824.48

by Campbell
Crimpnology Nipple:THASS Turnback (for use with 150lb. floating flange)

Specifications for Variant SKU: THASS-24C Campbell Fittings
Series:	THASS Series
Shape (Orientation):	Straight
Ends Configuration:	6in Flange Stub, 6in Hose Barb
Material(s):	316 Stainless Steel

Recommended Use:	Multi-purpose fluid, chemical, bulk handling
Recommended Hose Attachments:	Interlocking ferrules
Features and Benefits:	Designed for use with Campbell Interlocking Ferrules. Fittings use the same ferrules as Campbell COBRA Parts C and E, Chemjoint Couplings, and Goodyear InstaLock Cam and Grove Couplings to keep ferrule inventory low and flexible. Interlock groove on fitting locks ferrule into place for the ultimate in holding power Graduated serration pattern (sharper near the interlock, rounder near the end, with smooth end detail to reduce potential failures caused by abrasion) grips, seals and protects hose. Shank and ferrule lengths are matched for performance and to avoid potential hose tube or cover damage. Crimped assemblies are low profile and eliminate sharp edges from clamp buckles.
Recommended Hose Attachments:	Crimpnology Nipples provide an excellent fitting solution for medium-pressure applications such as "Frac Hose", mud pump hose, and other abusive applications


Part Number	Hose Size
THASS-4C	1"
THASS-6C	1-1/2"
THASS-8C	2"
THASS-10C	2-1/2"
THASS-12C	3"
THASS-16C	4"
THASS-24C	6"
THASS-32C	8"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
