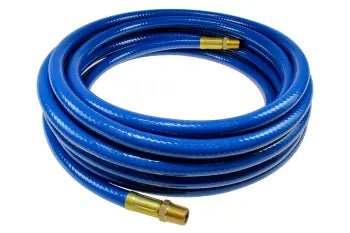

TP4100 by Coilhose | Hose | 1/4" Hose ID | 17/32" Hose OD | 1/4" Male NPT Rigid | Blue | Thermoplastic | 100ft

TP4100 by Coilhose | Hose | 1/4" Hose ID | 17/32" Hose OD | 1/4" Male NPT Rigid | Blue | Thermoplastic | 100ft

Save $54.89 Save $54.89
$137.23
$137.23 - $137.23
$137.23
$82.34
$82.34 - $82.34
$82.34
Coilhose Pneumatics - Straight Hose - Thermoplastic Hose
Specifications for Variant SKU: TP4100 Coilhose
Hose Color(s): Blue
Material(s): Thermoplastic
Overview:
  • Thermoplastic combines prime PVC with special additives allowing this hose to resist long term deterioration caused by exposure to air line lubricating oils. A tough cover protects against scuffs, cuts and abrasions while rayon spiral synthetic cord assures added strength, making this product a popular choice for industrial environments. Thermoplastic hose should be used with crimped-on barb fittings only. Available in Blue and with or without fittings.

Part No Fittings Hose ID Hose OD Temperature Range Working Pressure
at 70 deg. F		 Length Color
TP4M06 No Fittings 1/4" 17/32" -20°F to +150°F 300 PSI 6ft Blue
TP4025 1/4" MPT Rigid 25ft Blue
TP4M25 No Fittings 25ft Blue
TP4050 1/4" MPT Rigid 50ft Blue
TP4M50 No Fittings 50ft Blue
TP4100 1/4" MPT Rigid 100ft Blue
TP4M100 No Fittings 100ft Blue
TP4500** No Fittings 600ft Reel Blue

TP6025 3/8" MPT Rigid 3/8" 21/32 -20°F to +150°F 300 PSI 25ft Blue
TP6025-DL* 3/8" MPT Rigid 25ft Blue
TP6025Z-DL* 1/4" MPT Rigid Auto 25ft Blue
TP60254 1/4" MPT Rigid 25ft Blue
TP6M25 No Fittings 25ft Blue
TP6050 3/8" MPT Rigid 50ft Blue
TP6050-DL* 3/8" MPT Rigid 50ft Blue
TP6050Z-DL* 1/4" MPT Rigid Auto 50ft Blue
TP60504 1/4" MPT Rigid 50ft Blue
TP6M50 No Fittings 50ft Blue
TP6100 3/8" MPT Rigid 100ft Blue
TP61004 1/4" MPT Rigid 100ft Blue
TP6500** 1/4" MPT Rigid 600ft Reel Blue
*Denotes Display Package
**Reel lengths shown are approximate and may vary.
