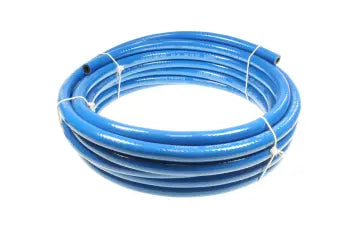

TP4M50 by Coilhose | Hose | 1/4" Hose ID | 17/32" Hose OD | No Fittings | Blue | Thermoplastic | 50ft

TP4M50 by Coilhose | Hose | 1/4" Hose ID | 17/32" Hose OD | No Fittings | Blue | Thermoplastic | 50ft

Save $26.40 Save $26.40
$66.00
$66.00 - $66.00
$66.00
$39.60
$39.60 - $39.60
$39.60
Coilhose Pneumatics - Straight Hose - Thermoplastic Hose
Specifications for Variant SKU: TP4M50 Coilhose
Hose Color(s): Blue
Material(s): Thermoplastic
Overview:
  • Thermoplastic combines prime PVC with special additives allowing this hose to resist long term deterioration caused by exposure to air line lubricating oils. A tough cover protects against scuffs, cuts and abrasions while rayon spiral synthetic cord assures added strength, making this product a popular choice for industrial environments. Thermoplastic hose should be used with crimped-on barb fittings only. Available in Blue and with or without fittings.

Part No Fittings Hose ID Hose OD Temperature Range Working Pressure
at 70 deg. F		 Length Color
TP4M06 No Fittings 1/4" 17/32" -20°F to +150°F 300 PSI 6ft Blue
TP4025 1/4" MPT Rigid 25ft Blue
TP4M25 No Fittings 25ft Blue
TP4050 1/4" MPT Rigid 50ft Blue
TP4M50 No Fittings 50ft Blue
TP4100 1/4" MPT Rigid 100ft Blue
TP4M100 No Fittings 100ft Blue
TP4500** No Fittings 600ft Reel Blue

TP6025 3/8" MPT Rigid 3/8" 21/32 -20°F to +150°F 300 PSI 25ft Blue
TP6025-DL* 3/8" MPT Rigid 25ft Blue
TP6025Z-DL* 1/4" MPT Rigid Auto 25ft Blue
TP60254 1/4" MPT Rigid 25ft Blue
TP6M25 No Fittings 25ft Blue
TP6050 3/8" MPT Rigid 50ft Blue
TP6050-DL* 3/8" MPT Rigid 50ft Blue
TP6050Z-DL* 1/4" MPT Rigid Auto 50ft Blue
TP60504 1/4" MPT Rigid 50ft Blue
TP6M50 No Fittings 50ft Blue
TP6100 3/8" MPT Rigid 100ft Blue
TP61004 1/4" MPT Rigid 100ft Blue
TP6500** 1/4" MPT Rigid 600ft Reel Blue
*Denotes Display Package
**Reel lengths shown are approximate and may vary.
Coilhose Pneumatics

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.
