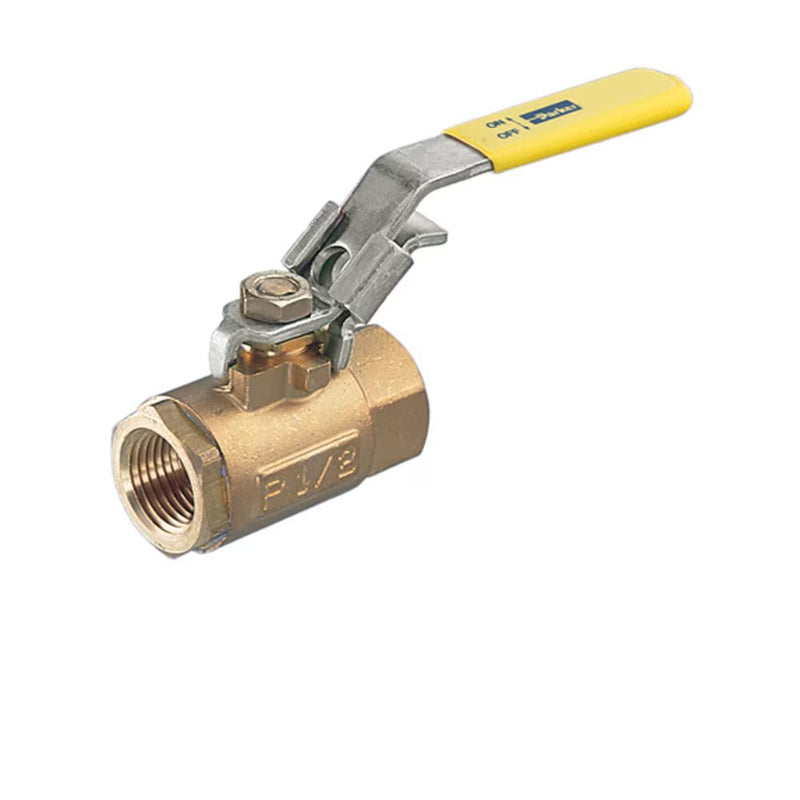

V500P-20 by Parker | Ball Valves | 1-1/4" Female NPT Pipe Thread | 8.05" Length | Straight | Brass

V500P-20 by Parker | Ball Valves | 1-1/4" Female NPT Pipe Thread | 8.05" Length | Straight | Brass

Save $45.55 Save $45.55
$113.87
$113.87 - $113.87
$113.87
$68.32
$68.32 - $68.32
$68.32

by Parker Hannifin
Ball Valves Brass Series 500:Female-Female Pipe Ends V500P-20, V500P-24, V500P-32
Specifications for Variant SKU: V500P-20 Parker
Series: V500P Series
Shape (Orientation): Straight
Material(s): Brass, Chrome-Plated Brass, Steel
Seal Material(s): PTFE
Special Properties: Valved
Product Features:
  • Forged brass body
  • Chrome plated brass ball
  • PTFE seats/seals
  • Steel handle
Style:
  • V-Valve
  • VP-Valve, padlocking handle
  • VV-Valve, vented
  • VVP-Valve, vented, padlocking handle
Type:
  • 500-Female/Female PTF ports
Material:
  • P-Brass
  • PN-Nickel plated
Options:
  • 01-Stainless Steel Ball & Stem
  • 02-Stainless Steel Handle & Nut
  • 03-Stainless Steel Ball, Stem, Handle & Nut
  • 04-Tee Handle
  • 08-Unmarked yellow vinyl handle cover
  • 21-Oval Handle
Specification:
Temperature Range: 0° to +350° F (-17.7° to +176.6° C)
Pressure Range:
  • 600 WOG , Cold Non-shock
  • Saturated Steam up to 150 PSI (10.3 bar)
  • Vacuum Service to 29 Inches Hg
  • Vented up to 250 PSI (17.2 bar)
Part Number Pipe Thread (NPT) Octagon H L M N Flow Diameter (D)
V500P-20 1-1/4" 1.93" 6.22" 8.05" 3.66" 3.01" 1.18"
V500P-24 1-1/2" 2.13" 6.22" 8.23" 4.02" 3.25" 1.50"
V500P-32 2" 2.69" 6.22" 8.58" 4.76" 3.52" 1.89"

*PTF Special Short. **PTF SPL Extra Short
