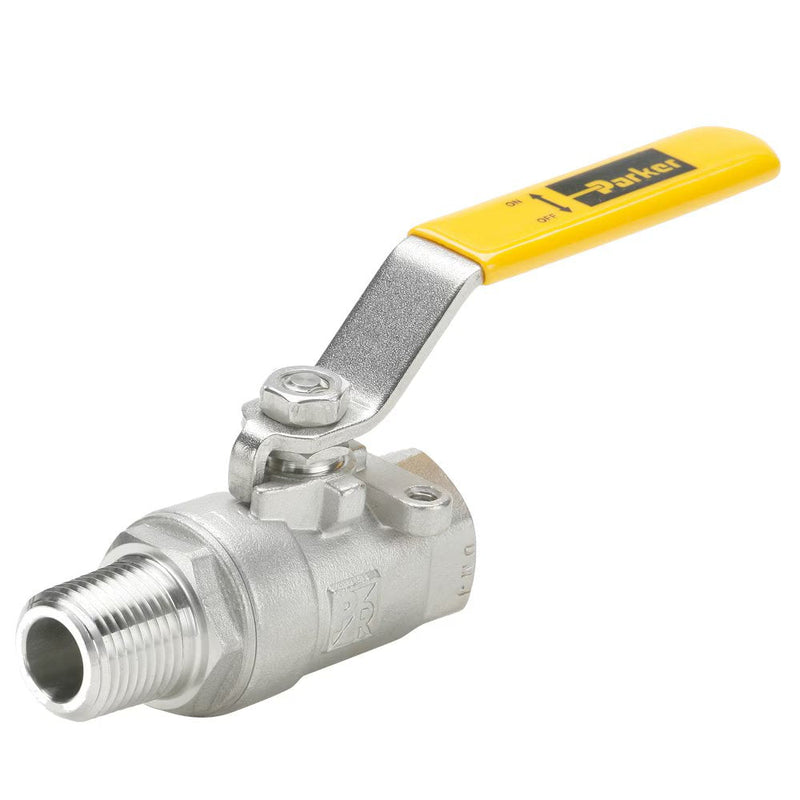

V501SS-6 by Parker | Ball Valve | 3/8" Male-Female NPT Thread | 15/16" Hex | 5.60" Length | Straight | Stainless Steel

Save $0.83

$90.16

$90.16 - $90.16

$90.16

$89.33

$89.33 - $89.33

$89.33

by Parker Hannifin
Ball Valves Stainless Steel Series 501SS:Male-Female Pipe Ends V501SS

Quantity

Specifications for Variant SKU: V501SS-6 Parker
Series:	V501SS Series
Shape (Orientation):	Straight
Material(s):	Stainless Steel
Seal Material(s):	PTFE
Special Properties:	Silicone Free, Valved

Specification:
Product Features:	CF-8M Stainless Steel body Stainless Steel ball PTFE Seats/Seals Stainless Steel handle Silicone Free
Style:	V-Valve
Type:	501-Male/Female NPT Ports
Material:	SS – Stainless Steel
Options:	20-Short Handle 21-Oval Handle 35-Welded Retainer Nut
Temperature Range:	0° to +400° F (-17.7° to +204.4° C)
Pressure Range:	2000 PSI (137.8 bar) Vacuum service 28 inches Hg
Approvals:	Meets material requirements of NACE MR-01-75


Part Number	Pipe Thread (NPT)	Hex	F	G	L	M	N	Flow Diameter (D)
V501SS-4	1/4"	15/16"	.50"	1.12"	5.60"	2.65"	1.97"	.280"
V501SS-6	3/8"	15/16"	.50"	1.12"	5.60"	2.65"	1.97"	.375"
V501SS-8	1/2"	1-1/16"	.50"	1.12"	5.85"	3.05"	2.00"	.500"
V501SS-12	3/4"	1-3/8"	.88"	1.37"	7.27"	3.85"	2.55"	.720"
V501SS-16	1"	1-5/8"	.88"	1.37"	7.48"	4.25"	2.68"	.940"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
