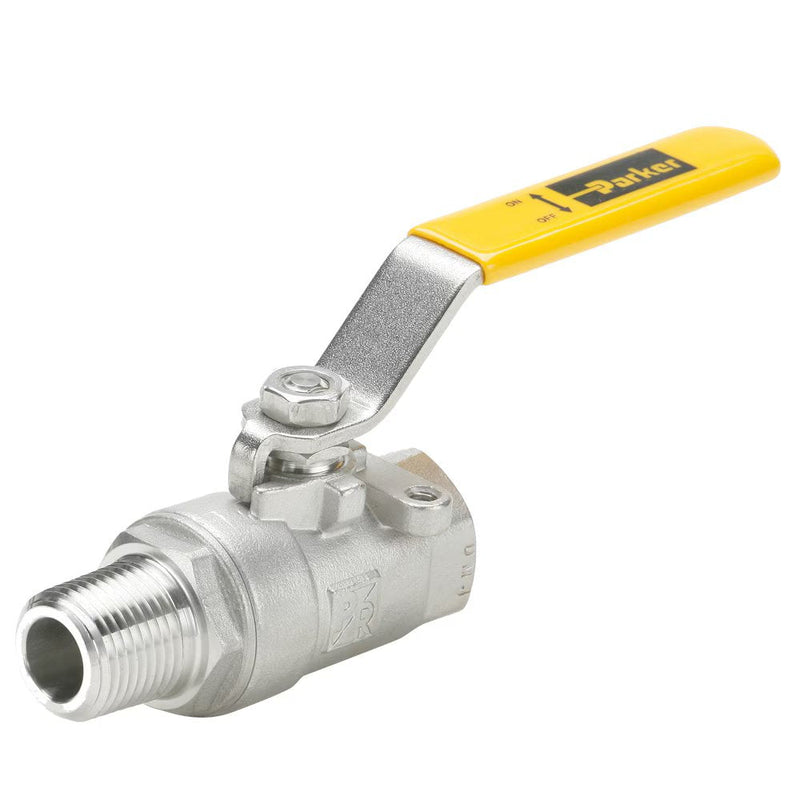

V501SS-8 by Parker | Ball Valve | 1/2" Male-Female NPT Thread | 1-1/16" Hex | 5.85" Length | Straight | Stainless Steel | Pack of 5

Save $336.27

$840.67

$840.67 - $840.67

$840.67

$504.40

$504.40 - $504.40

$504.40

by Parker Hannifin
Ball Valves Stainless Steel Series 501SS:Male-Female Pipe Ends V501SS

Package Quantity: 5 Units

Specifications for Variant SKU: V501SS-8 Parker \| 5 \|
Series:	V501SS Series
Shape (Orientation):	Straight
Material(s):	Stainless Steel
Seal Material(s):	PTFE
Special Properties:	Silicone Free, Valved

Specification:
Product Features:	CF-8M Stainless Steel body Stainless Steel ball PTFE Seats/Seals Stainless Steel handle Silicone Free
Style:	V-Valve
Type:	501-Male/Female NPT Ports
Material:	SS – Stainless Steel
Options:	20-Short Handle 21-Oval Handle 35-Welded Retainer Nut
Temperature Range:	0° to +400° F (-17.7° to +204.4° C)
Pressure Range:	2000 PSI (137.8 bar) Vacuum service 28 inches Hg
Approvals:	Meets material requirements of NACE MR-01-75


Part Number	Pipe Thread (NPT)	Hex	F	G	L	M	N	Flow Diameter (D)
V501SS-4	1/4"	15/16"	.50"	1.12"	5.60"	2.65"	1.97"	.280"
V501SS-6	3/8"	15/16"	.50"	1.12"	5.60"	2.65"	1.97"	.375"
V501SS-8	1/2"	1-1/16"	.50"	1.12"	5.85"	3.05"	2.00"	.500"
V501SS-12	3/4"	1-3/8"	.88"	1.37"	7.27"	3.85"	2.55"	.720"
V501SS-16	1"	1-5/8"	.88"	1.37"	7.48"	4.25"	2.68"	.940"
