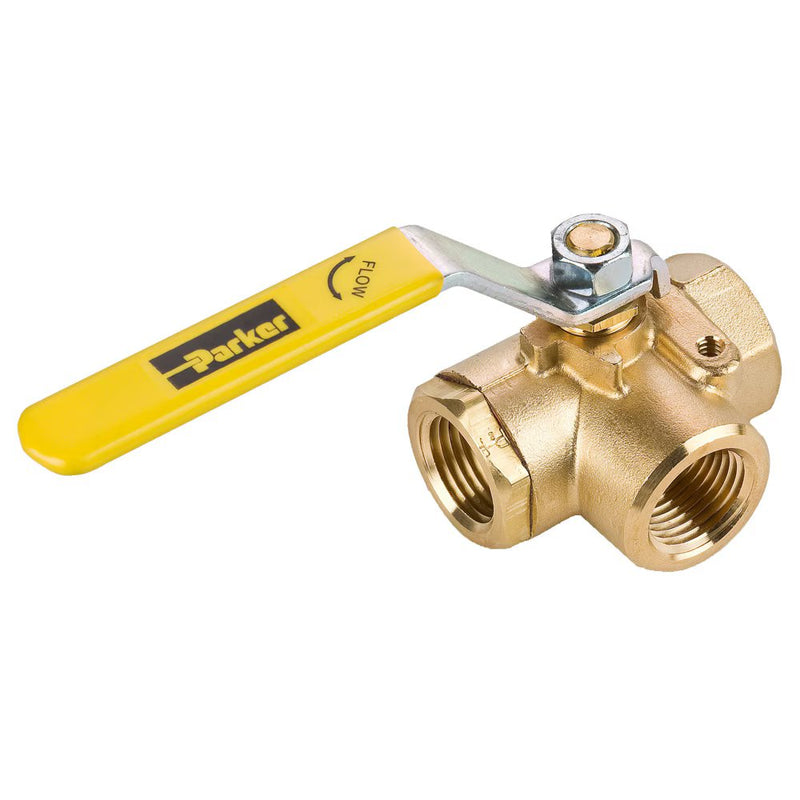

V533P-16 by Parker | Ball Valve | 1" Female PTF Pipe Thread | 1-9/16" Hex | 5.54" Length | Tee | Brass

V533P-16 by Parker | Ball Valve | 1" Female PTF Pipe Thread | 1-9/16" Hex | 5.54" Length | Tee | Brass

Save $129.09 Save $129.09
$322.72
$322.72 - $322.72
$322.72
$193.63
$193.63 - $193.63
$193.63

by Parker Hannifin
Ball Valves Brass Series 533 3-Way Diversion / Series 540 4-Way:Female-Female-Female Pipe Ends V533P
Specifications for Variant SKU: V533P-16 Parker
Series: V533P Series
Shape (Orientation): Tee
Material(s): Brass, Chrome-Plated Brass, Steel
Seal Material(s): PTFE
Special Properties: Valved
Product Features:
  • Forged brass body
  • Chrome plated brass ball
  • PTFE seats/seals
  • Fluorocarbon Stem O-rings
  • Steel handle
Style:
  • V-Valve
  • VP-Valve, padlocking handle
Type:
  • 533 3-Way Diversion
  • 540 4-Way
Material:
  • P-Brass
Options:
  • 02-Stainless Steel Handle & Nut
  • 08-Unmarked yellow vinyl handle cover
Specification:
Temperature Range: -20° to +350° F (-6.6° to +176.6° C)
Pressure Range:
  • 400 PSI (27.5 bar)
  • Vacuum Service to 29 Inches Hg
Part Number Straight Thread (PTF) Hex (B) E F G H K L M N Flow Diameter (D)
V533P-4 1/4" 15/16" .50" 1.08" 1.12" 3.96" 1.03" 2.47" 2.03" 1.94" .375"
V533P-6 3/8" 15/16" .50" 1.08" 1.12" 3.96" 1.03" 2.47" 2.03" 1.94" .375"
V533P-8 1/2" 1-1/16" .50" 1.18" 1.12" 3.96" 1.11" 2.58" 2.20" 1.98" .500"
V533P-12 3/4" 1-1/4" .87" 1.43" 1.37" 3.96" 1.42" 2.90" 2.83" 2.17" .685"
V533P-16 1" 1-9/16" .87" 1.62" 1.37" 3.96" 1.58" 3.21" 3.16" 2.32" .875"
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
