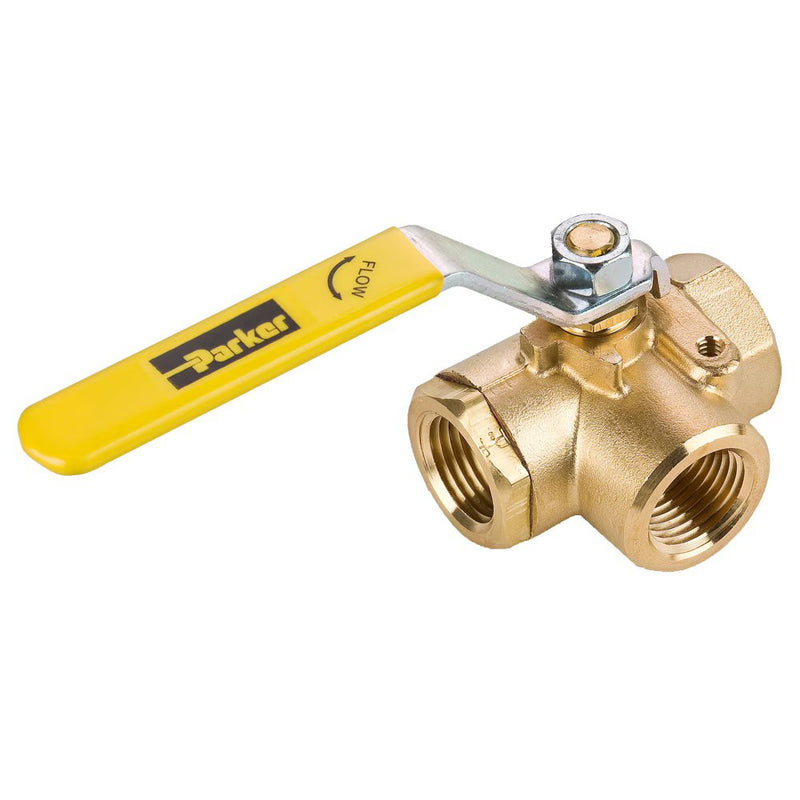

V533P-8 by Parker | Ball Valve | 1/2" Female PTF Pipe Thread | 1-1/16" Hex | 5.07" Length | Tee | Brass

V533P-8 by Parker | Ball Valve | 1/2" Female PTF Pipe Thread | 1-1/16" Hex | 5.07" Length | Tee | Brass

Save $30.17 Save $30.17
$75.42
$75.42 - $75.42
$75.42
$45.25
$45.25 - $45.25
$45.25

by Parker Hannifin
Ball Valves Brass Series 533 3-Way Diversion / Series 540 4-Way:Female-Female-Female Pipe Ends V533P
Specifications for Variant SKU: V533P-8 Parker
Series: V533P Series
Shape (Orientation): Tee
Material(s): Brass, Chrome-Plated Brass, Steel
Seal Material(s): PTFE
Special Properties: Valved
Product Features:
  • Forged brass body
  • Chrome plated brass ball
  • PTFE seats/seals
  • Fluorocarbon Stem O-rings
  • Steel handle
Style:
  • V-Valve
  • VP-Valve, padlocking handle
Type:
  • 533 3-Way Diversion
  • 540 4-Way
Material:
  • P-Brass
Options:
  • 02-Stainless Steel Handle & Nut
  • 08-Unmarked yellow vinyl handle cover
Specification:
Temperature Range: -20° to +350° F (-6.6° to +176.6° C)
Pressure Range:
  • 400 PSI (27.5 bar)
  • Vacuum Service to 29 Inches Hg
Part Number Straight Thread (PTF) Hex (B) E F G H K L M N Flow Diameter (D)
V533P-4 1/4" 15/16" .50" 1.08" 1.12" 3.96" 1.03" 2.47" 2.03" 1.94" .375"
V533P-6 3/8" 15/16" .50" 1.08" 1.12" 3.96" 1.03" 2.47" 2.03" 1.94" .375"
V533P-8 1/2" 1-1/16" .50" 1.18" 1.12" 3.96" 1.11" 2.58" 2.20" 1.98" .500"
V533P-12 3/4" 1-1/4" .87" 1.43" 1.37" 3.96" 1.42" 2.90" 2.83" 2.17" .685"
V533P-16 1" 1-9/16" .87" 1.62" 1.37" 3.96" 1.58" 3.21" 3.16" 2.32" .875"
