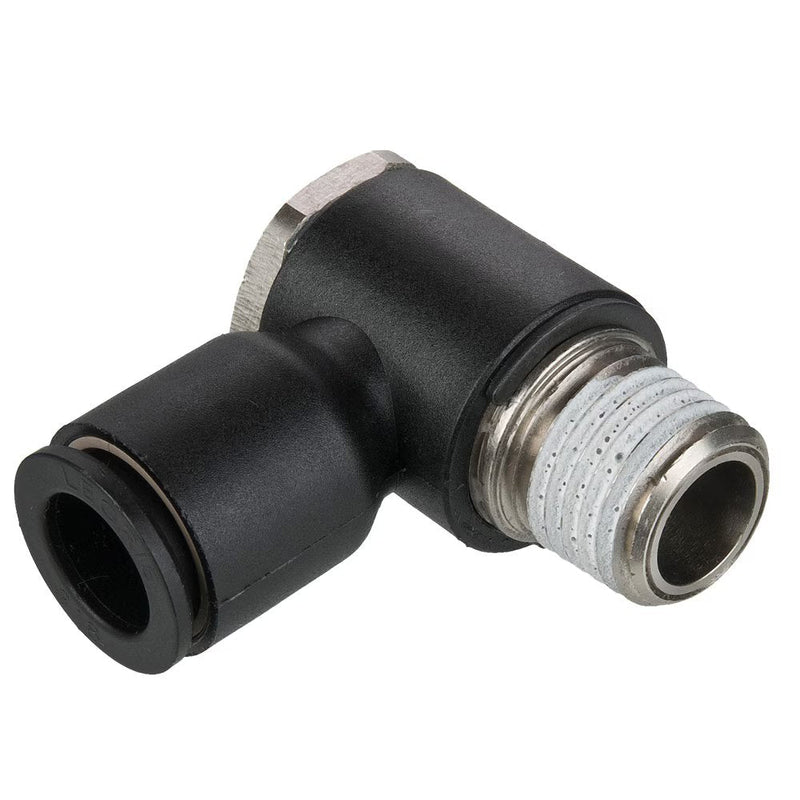

W369PLPBJ-4-2 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Modular Fitting | 1/4" Banjo x 1/8" Male NPT Thread | 13mm Hex | .83" Length (L) | Glass-Reinforced Nylon | Pack of 10

Save $23.02

$175.15

$175.15 - $175.15

$175.15

$152.13

$152.13 - $152.13

$152.13

by Parker Hannifin
Push-to-Connect Fittings:W369PLPBJ Banjo - NPT

Package Quantity: 10 Units

Specifications for Variant SKU: W369PLPBJ-4-2 Parker \| 10 \|
Series:	369PLPBJ Series
Shape (Orientation):	90 Degree
Material(s):	Glass-Reinforced Nylon
Special Properties:	Corrosion Resistance, Chemical Resistance, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	Tube Size	Thread NPT / UNF	Hex (C)	H	L2
369PLPBJ-2-0	1/8"	10-32"	-	.79"	.65"
369PLPBJ-4M-0	5/32"	10-32"	-	.79"	.65"
W369PLPBJ-4M-2	5/32"	1/8"	13 mm	.79"	.73"
369PLPBJ-4-0	10-32"	1/4"	-	.79"	.73"
W369PLPBJ-4-2	1/4"	1/8"	13 mm	.73"	.83"
W369PLPBJ-4-4	1/4"	1/4"	17 mm	.89"	.91"
W369PLPBJ-4-6	1/4"	3/8"	21 mm	1.04"	1.12"
W369PLPBJ-6-4	3/8"	1/4"	17 mm	.89"	1.12"
W369PLPBJ-6-6	3/8"	3/8"	21 mm	1.04"	1.20"
