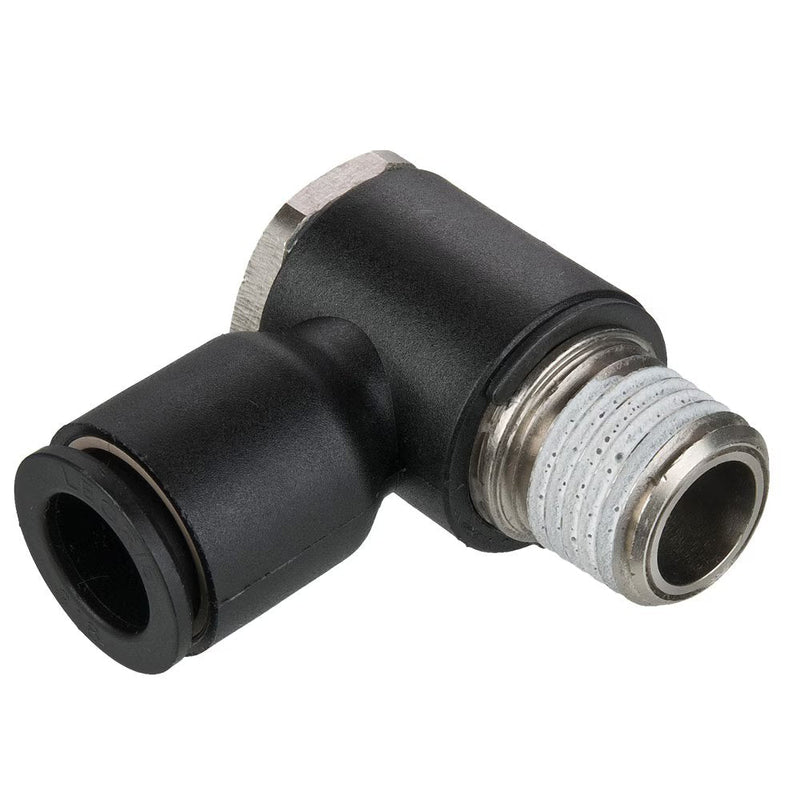

W369PLPBJ-6-6 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Modular Fitting | 3/8" Banjo x 3/8" Male NPT Thread | 21mm Hex | 1.20" Length (L) | Glass-Reinforced Nylon | Pack of 10

W369PLPBJ-6-6 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Modular Fitting | 3/8" Banjo x 3/8" Male NPT Thread | 21mm Hex | 1.20" Length (L) | Glass-Reinforced Nylon | Pack of 10

Save $18.47 Save $18.47
$203.18
$203.18 - $203.18
$203.18
$184.71
$184.71 - $184.71
$184.71

by Parker Hannifin
Push-to-Connect Fittings:W369PLPBJ Banjo - NPT

Package Quantity: 10 Units

Specifications for Variant SKU: W369PLPBJ-6-6 Parker | 10 |
Series: 369PLPBJ Series
Shape (Orientation): 90 Degree
Material(s): Glass-Reinforced Nylon
Special Properties: Corrosion Resistance, Chemical Resistance, Silicone Free
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number Tube Size Thread NPT / UNF Hex (C) H L2
369PLPBJ-2-0 1/8" 10-32" - .79" .65"
369PLPBJ-4M-0 5/32" 10-32" - .79" .65"
W369PLPBJ-4M-2 5/32" 1/8" 13 mm .79" .73"
369PLPBJ-4-0 10-32" 1/4" - .79" .73"
W369PLPBJ-4-2 1/4" 1/8" 13 mm .73" .83"
W369PLPBJ-4-4 1/4" 1/4" 17 mm .89" .91"
W369PLPBJ-4-6 1/4" 3/8" 21 mm 1.04" 1.12"
W369PLPBJ-6-4 3/8" 1/4" 17 mm .89" 1.12"
W369PLPBJ-6-6 3/8" 3/8" 21 mm 1.04" 1.20"
