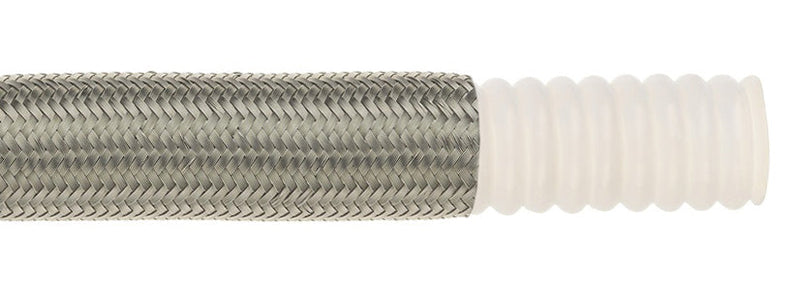

WOC-T06 by Dixon Valve | -06 | True I.D. Open Pitch Convoluted PTFE Hose | 3/8" Size | White Non-Conductive Tube

WOC-T06 by Dixon Valve | -06 | True I.D. Open Pitch Convoluted PTFE Hose | 3/8" Size | White Non-Conductive Tube

Save $1.35 Save $1.35
$15.30
$15.30 - $15.30
$15.30
$13.95
$13.95 - $13.95
$13.95

Dixon Valve
PTFE Hose | True I.D. Open Pitch Convoluted Hose

Suitable for conveying acids, chemicals, foods, and pharmaceuticals.
Specifications for Variant SKU: WOC-T06 Dixon
Series: WOC-T Series
Hose Color(s): Metallic
Dash Size: -6
Internal Diameter: 0.375in
Tubing Construction: Corrugated Non-Dissipating PTFE
Cover Construction: Stainless Steel Braid
Compatible with the following Series: FJC-T Series  |   FJR-T Series  |   MPC-T Series  |   MPR-T Series  |   TCR-T Series  |   TCMR-T Series  |   FRR-T Series  |   FRRE-T Series

Dixon Valve
PTFE Hose | True I.D. Open Pitch Convoluted Hose

Suitable for conveying acids, chemicals, foods, and pharmaceuticals.


Materials:
  • 304 stainless braided
Specifications:
  • Temperature Range: -100°F to 450°F (-73°C to 232°C)
  • FITTINGS NOT INCLUDED

White, Non-Conductive
Part Number		 Black, Conductive
Part Number		 Size Working Pressure Burst Pressure
WOC-T04 BOC-T04 1/4" 1740 PSI 6960 PSI
WOC-T06 BOC-T06 3/8" 1850 PSI 7400 PSI
WOC-T08 BOC-T08 1/2" 1500 PSI 6000 PSI
WOC-T12 BOC-T12 3/4" 1300 PSI 5200 PSI
WOC-T16 BOC-T16 1" 1000 PSI 4000 PSI
WOC-T20 BOC-T20 1-1/4" 900 PSI 3600 PSI
WOC-T24 BOC-T24 1-1/2" 700 PSI 2800 PSI
WOC-T32 BOC-T32 2" 500 PSI 2000 PSI
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
