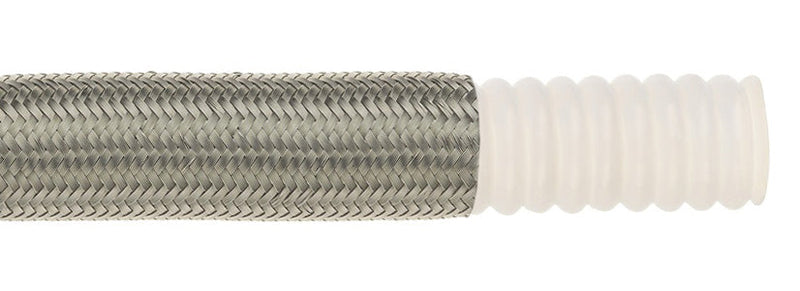

WOC-T08 by Dixon Valve | -08 | True I.D. Open Pitch Convoluted PTFE Hose | 1/2" Size | White Non-Conductive Tube

Name: WOC-T08 by Dixon Valve | -08 | True I.D. Open Pitch Convoluted PTFE Hose | 1/2" Size | White Non-Conductive Tube
Brand: Dixon
SKU: WOC-T08 Dixon
Price: 15.71 USD
Availability: InStock

Save $1.53

$17.24

$17.24 - $17.24

$17.24

$15.71

$15.71 - $15.71

$15.71

Dixon Valve
PTFE Hose | True I.D. Open Pitch Convoluted Hose

Suitable for conveying acids, chemicals, foods, and pharmaceuticals.

Quantity

Specifications for Variant SKU: WOC-T08 Dixon
Series:	WOC-T Series
Hose Color(s):	Metallic
Dash Size:	-8
Internal Diameter:	0.50in
Tubing Construction:	Corrugated Non-Dissipating PTFE
Cover Construction:	Stainless Steel Braid
Compatible with the following Series:	FJC-T Series \| FJR-T Series \| MPC-T Series \| MPR-T Series \| TCR-T Series \| TCMR-T Series \| FRR-T Series \| FRRE-T Series

Dixon Valve
PTFE Hose | True I.D. Open Pitch Convoluted Hose

Suitable for conveying acids, chemicals, foods, and pharmaceuticals.

Materials:
304 stainless braided
Specifications:
Temperature Range: -100°F to 450°F (-73°C to 232°C) FITTINGS NOT INCLUDED


White, Non-Conductive Part Number	Black, Conductive Part Number	Size	Working Pressure	Burst Pressure
WOC-T04	BOC-T04	1/4"	1740 PSI	6960 PSI
WOC-T06	BOC-T06	3/8"	1850 PSI	7400 PSI
WOC-T08	BOC-T08	1/2"	1500 PSI	6000 PSI
WOC-T12	BOC-T12	3/4"	1300 PSI	5200 PSI
WOC-T16	BOC-T16	1"	1000 PSI	4000 PSI
WOC-T20	BOC-T20	1-1/4"	900 PSI	3600 PSI
WOC-T24	BOC-T24	1-1/2"	700 PSI	2800 PSI
WOC-T32	BOC-T32	2"	500 PSI	2000 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
