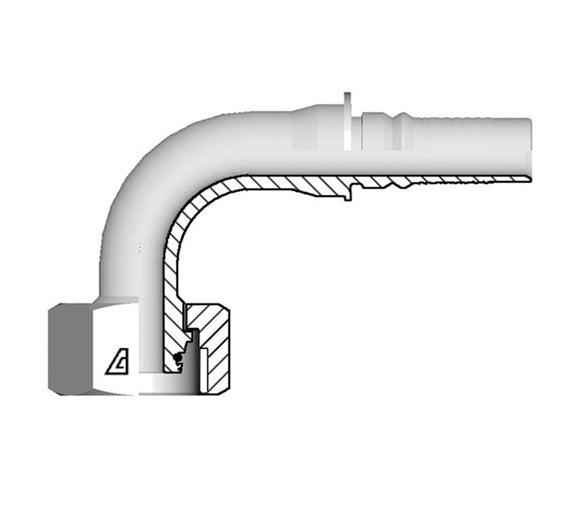

Y-1030-FM9H Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | DIN 3865 Heavy | M30 Female Metric O-Ring Swivel x -10 Hose ID | Steel

Y-1030-FM9H Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | DIN 3865 Heavy | M30 Female Metric O-Ring Swivel x -10 Hose ID | Steel

Save $8.46 Save $8.46
$29.61
$29.61 - $29.61
$29.61
$21.15
$21.15 - $21.15
$21.15

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Female Metric O-Ring Swivel x Hose Barb

DIN 3865 Heavy
Specifications for Variant SKU: Y-1030-FM9H Kuriyama
Brand: Alfabiotech Evolution
Series: S Series
Shape (Orientation): 90 Degree
Material(s): Steel
Compatible with the following Series: E5K Series  |   E6K Series  |   E5KST Series  |   E6KST Series  |   E4K Series  |   E5.5K Series
Part Number Hose ID Size F Thread Tube OD C
Cut-Off
Factor		 D
Drop		 Hex Dia.
CH1		 Weight
Dash
Size		 in mm (mm) x TP (mm) mm mm mm mm lbs/each
Y-1030-FM9H -10 5/8" 25.9mm M30x2 20mm 48.0mm 55.0mm 36mm 0.64 lbs
Y-1230-FM9H -12 3/4" 19.0mm M30x2 20mm 61.0mm 67.5mm 36mm 0.92 lbs
Y-1236-FM9H -12 3/4" 19.0mm M36x2 25mm 61.7mm 65.0mm 46mm 1.17 lbs
Y-1636-FM9H -16 1" 25.4mm M36x2 25mm 76.5mm 82.0mm 46mm 1.56 lbs
Y-1642-FM9H -16 1" 25.4mm M42x2 30mm 86.4mm 79.0mm 50mm 1.62 lbs
Y-2052-FM9H -20 1-1/4" 38.1mm M52x2 38mm 90.9mm 101.0mm 60mm 2.97 lbs
