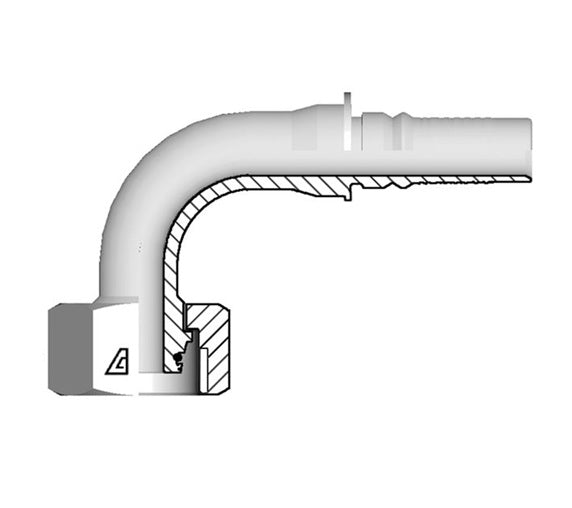

Y-1230-FM9H Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | DIN 3865 Heavy | M30 Female Metric O-Ring Swivel x -12 Hose ID | Steel

Save $15.78

$55.22

$55.22 - $55.22

$55.22

$39.44

$39.44 - $39.44

$39.44

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Female Metric O-Ring Swivel x Hose Barb

DIN 3865 Heavy

Specifications for Variant SKU: Y-1230-FM9H Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	90 Degree
Material(s):	Steel
Compatible with the following Series:	E5K Series \| E6K Series \| E5KST Series \| E6KST Series \| E4K Series \| E5.5K Series


Part Number	Hose ID Size			F Thread	Tube OD	C Cut-Off Factor	D Drop	Hex Dia. CH1	Weight
Part Number	Dash Size	in	mm	(mm) x TP (mm)	mm	mm	mm	mm	lbs/each
Y-1030-FM9H	-10	5/8"	25.9mm	M30x2	20mm	48.0mm	55.0mm	36mm	0.64 lbs
Y-1230-FM9H	-12	3/4"	19.0mm	M30x2	20mm	61.0mm	67.5mm	36mm	0.92 lbs
Y-1236-FM9H	-12	3/4"	19.0mm	M36x2	25mm	61.7mm	65.0mm	46mm	1.17 lbs
Y-1636-FM9H	-16	1"	25.4mm	M36x2	25mm	76.5mm	82.0mm	46mm	1.56 lbs
Y-1642-FM9H	-16	1"	25.4mm	M42x2	30mm	86.4mm	79.0mm	50mm	1.62 lbs
Y-2052-FM9H	-20	1-1/4"	38.1mm	M52x2	38mm	90.9mm	101.0mm	60mm	2.97 lbs
