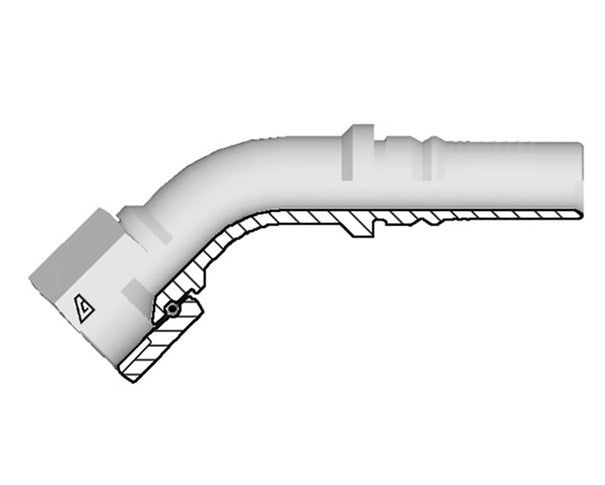

Y-1616-FJ45 Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | -16 Female JIC 37° Swivel Seat Interlock x -16 Hose ID | Steel

Name: Y-1616-FJ45 Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | -16 Female JIC 37° Swivel Seat Interlock x -16 Hose ID | Steel
Brand: Kuriyama
SKU: Y-1616-FJ45 Kuriyama
Price: 44.05 USD
Availability: InStock

Save $17.62

$61.67

$61.67 - $61.67

$61.67

$44.05

$44.05 - $44.05

$44.05

Specifications for Variant SKU: Y-1616-FJ45 Kuriyama
Brand:	Alfabiotech Evolution
Series:	Y Series
Shape (Orientation):	45 Degree
Ends Configuration:	1in Female JIC, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	E5K Series \| E6K Series \| E5KST Series \| E6KST Series \| E4K Series \| E5.5K Series


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	D Drop	Hex Dia. CH1	Weight
Part Number	Dash Size	in	mm	Dash Size	Size (in) - TPI	mm	mm	mm	lbs/each
Y-1212-FJ45	-12	3/4"	19.0mm	-12	1-1/16-12	66mm	27.5mm	32mm	0.65 lbs
Y-1616-FJ45	-16	1"	25.4mm	-16	1-5/16-12	80mm	31.0mm	38mm	1.01 lbs
Y-2020-FJ45	-20	1-1/4"	31.8mm	-20	1-5/8-12	93mm	37.0mm	50mm	1.69 lbs
Y-2424-FJ45	-24	1-1/2"	38.1mm	-24	1-7/8-12	121mm	40.5mm	55mm	2.63 lbs
Y-3232-FJ45	-32	2"	50.8mm	-32	2-1/2-12	148mm	51.5mm	70mm	4.96 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
