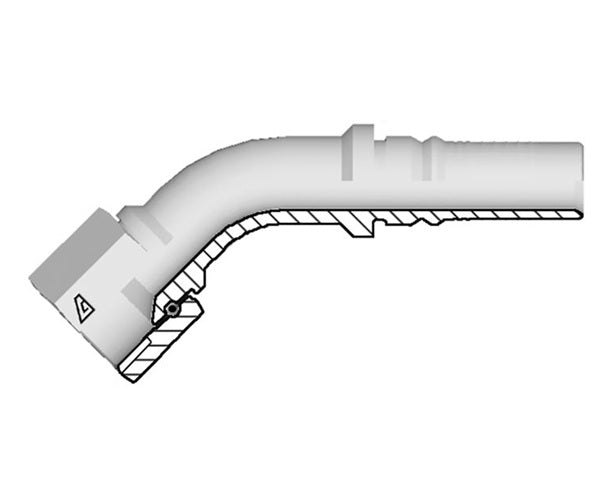

Y-3232-FJ45 Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | -32 Female JIC 37° Swivel Seat Interlock x -32 Hose ID | Steel

Y-3232-FJ45 Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | -32 Female JIC 37° Swivel Seat Interlock x -32 Hose ID | Steel

Save $80.42 Save $80.42
$281.46
$281.46 - $281.46
$281.46
$201.04
$201.04 - $201.04
$201.04

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | | 45° Elbow | Female JIC 37° Swivel Seat Interlock x Hose Barb
Specifications for Variant SKU: Y-3232-FJ45 Kuriyama
Brand: Alfabiotech Evolution
Series: Y Series
Shape (Orientation): 45 Degree
Ends Configuration: 2in Female JIC, 2in Hose Barb
Material(s): Steel
Compatible with the following Series: E5K Series  |   E6K Series  |   E5KST Series  |   E6KST Series  |   E4K Series  |   E5.5K Series
Part Number Hose ID Size F Thread C Cut-Off
Factor		 D
Drop 		Hex Dia.
CH1		 Weight
Dash
Size		 in mm Dash
Size		 Size
(in) - TPI		 mm mm mm lbs/each
Y-1212-FJ45 -12 3/4" 19.0mm -12 1-1/16-12 66mm 27.5mm 32mm 0.65 lbs
Y-1616-FJ45 -16 1" 25.4mm -16 1-5/16-12 80mm 31.0mm 38mm 1.01 lbs
Y-2020-FJ45 -20 1-1/4" 31.8mm -20 1-5/8-12 93mm 37.0mm 50mm 1.69 lbs
Y-2424-FJ45 -24 1-1/2" 38.1mm -24 1-7/8-12 121mm 40.5mm 55mm 2.63 lbs
Y-3232-FJ45 -32 2" 50.8mm -32 2-1/2-12 148mm 51.5mm 70mm 4.96 lbs
