A04-16x16 Couplamatic A Series Coupling - NPTF - Male Swivel - 1" Hose ID - 1-11-1/2 Thread

A04-16x16 by Couplamatic | A Series Coupling | 1" Hose ID x 1-11-1/2 Thread NPTF Male Swivel | Straight

Save $13.97 Save $13.97
$34.92
$34.92 - $34.92
$34.92
$20.95
$20.95 - $20.95
$20.95

Couplamatic Systems Inc.
A Series - NPTF - Male Swivel
Specifications for Variant SKU: A04-16x16 Couplamatic
Series: A Series
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Male NPTF, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   2SK Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   JH Series  |   JH2 Series
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.

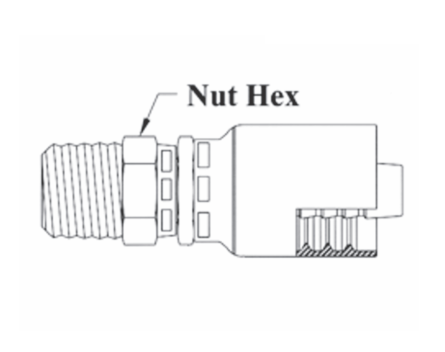

Part Number Hose ID Pipe Size Thread Size Nut Hex Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A04-4x2 1/4" 1/8" 1/8-27 5/8" - 04Z-J02
A04-4x4 1/4" 1/4" 1/4-18 5/8" 1AA4PS4 04Z-J04
A04-4x6 1/4" 3/8" 3/8-18 3/4" 1AA4PS6 -
A04-6x4 3/8" 1/4" 1/4-18 3/4" 1AA4PS6 06Z-J04
A04-6x6 3/8" 3/8" 3/8-18 3/4" 1AA6PS6 06Z-J06
A04-6x8 3/8" 1/2" 1/2-14 7/8" 1AA8PS6 06Z-J08
A04-8x6 1/2" 3/8" 3/8-18 3/4" - 08Z-J06
A04-8x8 1/2" 1/2" 1/2-14 7/8" 1AA8PS8 08Z-J08
A04-12x12 3/4" 3/4" 3/4-14 1-1/4" 1AA12PS12 12Z-J12
A04-16x16 1" 1" 1-11-1/2 1-3/8" 1AA16PS16 16Z-J16

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

-Swivel for installation purposes only. Leakage may occur at low pressure.
