A04-8x6 by Couplamatic | A Series Coupling | 1/2" Hose ID x 3/8-18 Thread Male Swivel NPTF | Straight

Save $1.21 Save $1.21
Original price $12.14
Original price $12.14 - Original price $12.14
Original price $12.14
Current price $10.93
$10.93 - $10.93
Current price $10.93

Couplamatic Systems Inc.
A Series - NPTF - Male Swivel

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: A04-8x6 Couplamatic
Series: A Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Male NPTF, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   2SK Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   JH Series  |   JH2 Series
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.

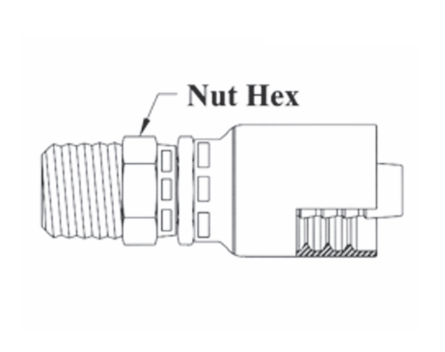

Part Number Hose ID Pipe Size Thread Size Nut Hex Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A04-4x2 1/4" 1/8" 1/8-27 5/8" - 04Z-J02
A04-4x4 1/4" 1/4" 1/4-18 5/8" 1AA4PS4 04Z-J04
A04-4x6 1/4" 3/8" 3/8-18 3/4" 1AA4PS6 -
A04-6x4 3/8" 1/4" 1/4-18 3/4" 1AA4PS6 06Z-J04
A04-6x6 3/8" 3/8" 3/8-18 3/4" 1AA6PS6 06Z-J06
A04-6x8 3/8" 1/2" 1/2-14 7/8" 1AA8PS6 06Z-J08
A04-8x6 1/2" 3/8" 3/8-18 3/4" - 08Z-J06
A04-8x8 1/2" 1/2" 1/2-14 7/8" 1AA8PS8 08Z-J08
A04-12x12 3/4" 3/4" 3/4-14 1-1/4" 1AA12PS12 12Z-J12
A04-16x16 1" 1" 1-11-1/2 1-3/8" 1AA16PS16 16Z-J16

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

-Swivel for installation purposes only. Leakage may occur at low pressure.
