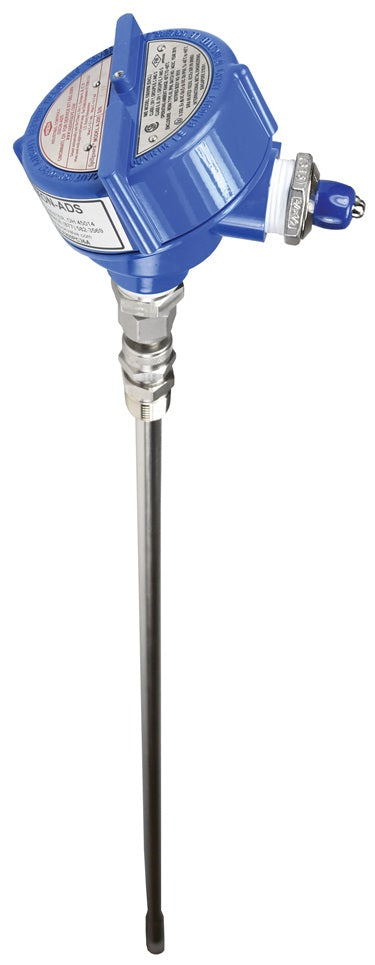

A200PC84A by Dixon Valve | ADS Spillguard® Probe | with Capacitance Probe | 84" Length

A200PC84A by Dixon Valve | ADS Spillguard® Probe | with Capacitance Probe | 84" Length

Save $122.12 Save $122.12
$1,099.10
$1,099.10 - $1,099.10
$1,099.10
$976.98
$976.98 - $976.98
$976.98

Dixon Valve
ADS Spillguard® Probe

For materials with dielectric constant > 1.8, liquids, powders, slurries.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: A200PC84A Dixon
Brand: ADS Spillguard®
Features:
  • 1/2" NPT sliding fitting standard.
Construction:
  • Probe: 316 stainless.
  • Housing: NEMA 4X, IP66.
Specifications:
  • Minimum dielectric constant 1.8.
  • Activation point: 1/4" into liquid.
  • Temperature range:
    • Capacitance Probe: -14°F to 250°F (-26°C to 121°C).
    • High-Temp Capacitance Probe: -14°F to 325°F (-26°C to 163°C).
  • Pressure rating on standard unit: 50 PSI: consult Dixon® for applications up to 300 PSI.
  • Probe designed for operating in Class I Division 1 Group ABCD and Class I Zone 0 Group IIC hazardous locations.
Capacitance
Part Number		 High-Temp Capacitance
Part Number		 Length
A200PC12A A200PHC12A 12"
A200PC24A - 24"
A200PC36A A200PHC36A 36"
A200PC48A A200PHC48A 48"
A200PC60A A200PHC60A 60"
A200PC72A A200PHC72A 72"
A200PC84A A200PHC84A 84"
