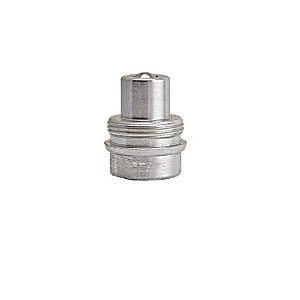

B-W2F2-S Breco by Foster | W Series | Quick Disconnect | 1/4" Plug x 1/4" Female NPT Thread | Valved | Steel

B-W2F2-S Breco by Foster | W Series | Quick Disconnect | 1/4" Plug x 1/4" Female NPT Thread | Valved | Steel

Save $1.64 Save $1.64
$14.75
$14.75 - $14.75
$14.75
$13.11
$13.11 - $13.11
$13.11

Foster Quick Disconnects - W Series Plugs - Breco
Specifications for Variant SKU: B-W2F2-S ZSi-Foster
Brand: Breco
Series: W Series
Shape (Orientation): Straight
Material(s): Steel
W Series [High Pressure Coupling, Enerpac Interchange]
Features:
  • Machined from solid steel bar stock for durability
  • Threaded sleeve locking mechanism mates with plug threads for secure manual connection
  • Chrome alloy balls used for valving; spring-loaded for positive sealing
  • Metal-to-metal seal between ball and coined seat
  • Polyurethane body seal resists high pressure extrusion
  • Threaded valve retainer ensures positive valve alignment
 Applications:
The "W" Series couplings, with threaded union locking and precision ball-type check valves, are ideal for extreme high-pressure applications such as portable hydraulic rams.
Specifications:
Size Rated Pressure (psig) Static Temperature Range (std seals)
1/4", 3/8" 10,000 -10° to +250°F
Note:
Protective dust plugs and caps are essential to prolong the life of a quick coupling. Every hydraulic quick coupling purchase should include proper dust plug and cap selection.
Part No. Size (Socket) Thread Size
Valve Non-Valve
B-2WM2-S B-2WEM2-S 1/4" 1/4–18
B-3WM3-S B-3WEM3-S 3/8" 3/8–18
Part No. Size (Plug) Thread Size
Valve Non-Valve
B-W2F2-S B-W2EF2-S 1/4" 1/4–18
B-W3F3-S B-W3EF3-S 3/8" 3/8–18
ZSi Foster

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
