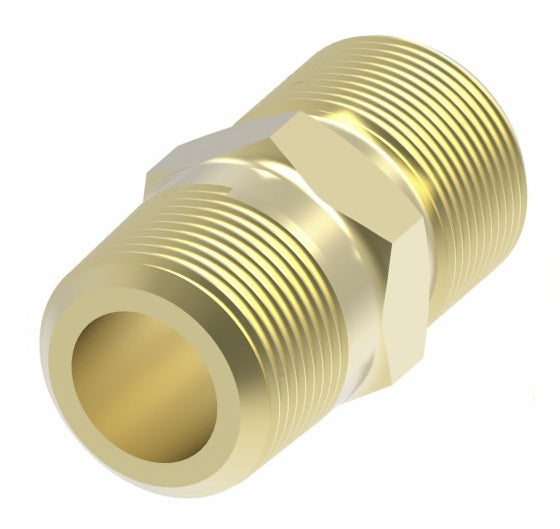

B1368X12X12 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector (Body Only) | 3/4" Tube OD x 3/4" Male Pipe | Brass

B1368X12X12 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector (Body Only) | 3/4" Tube OD x 3/4" Male Pipe | Brass

$16.10 - $16.10
$16.10
$16.10 - $16.10
$16.10

Aeroquip® by Danfoss
Air Brake Adapter for Copper Tubing - Male Connector
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: B1368X12X12 Danfoss
Material(s): Brass
Applications:
  • Air brake systems.
Advantages:
  • Easy to assemble (no flaring).
  • May be used with nylon tubing by replacing long nut and spherical sleeve with insert, rigid sleeve and nut.
  • Fair Vibration Resistance.
Used With:
  • Copper tubing in air brake systems.
Material:
  • CA360 Brass.
Pressure:
  • Maximum operating pressure of 150 psi.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with copper tubing.
Conformance:
  • Ref. SAE No. 120102BA
  • Meets specifications and standards of SAE and DOT.
Brass
Part Number 		Brass
with Sealant
Part Number 		Brass
Body Only
Part Number 		Brass
Body Only
with Sealant
Part Number 		Tube O.D. Male Pipe Thread Hex
C		 D D1 L
1368X4 1368X4Z B1368X4 - 1/4" 1/8" 7/16" 0.188" 0.188" 0.88"
1368X4X4 1368X4X4Z B1368X4X4 - 1/4" 1/4" 9/16" 0.188" 0.188" 1.09"
1368X6X2 1368X6X2Z B1368X6X2 - 3/8" 1/8" 9/16" 0.312" 0.188" 1.02"
1368X6 1368X6Z - B1368X6Z 3/8" 1/4" 9/16" 0.312" 0.312" 1.20"
1368X6X6 - B1368X6X6 B1368X6X6Z 3/8" 3/8" 11/16" 0.312" 0.406" opt. 1.23"
1368X6X8 1368X6X8Z B1368X6X8 - 3/8" 1/2" 7/8" 0.312" 0.531" opt. 1.42"
1368X8X4 1368X8X4Z B1368X8X4 - 1/2" 1/4" 11/16" 0.406" 0.312" 1.32"
1368X8 1368X8Z B1368X8 - 1/2" 3/8" 11/16" 0.406" 0.406" 1.32"
1368X8X8 1368X8X8Z B1368X8X8 - 1/2" 1/2" 7/8" 0.406" .531" opt 1.51"
1368X10X6 - B1368X10X6 - 5/8" 3/8" 13/16" 0.531" 0.406" 1.38"
1368X10 - B1368X10 B1368X10Z 5/8" 1/2" 7/8" 0.531" 0.531" 1.57
1368X12 - B1368X12 - 3/4" 1/2" 1" 0.656" 0.531" 1.67"
1368X12X12 - B1368X12X12 - 3/4" 3/4" 1-1/16" 0.656" 0.719" opt. 1.70"
