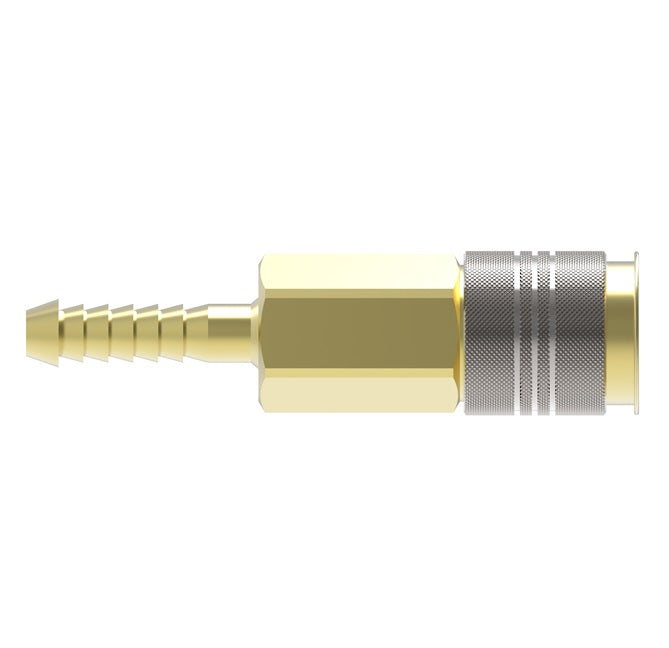

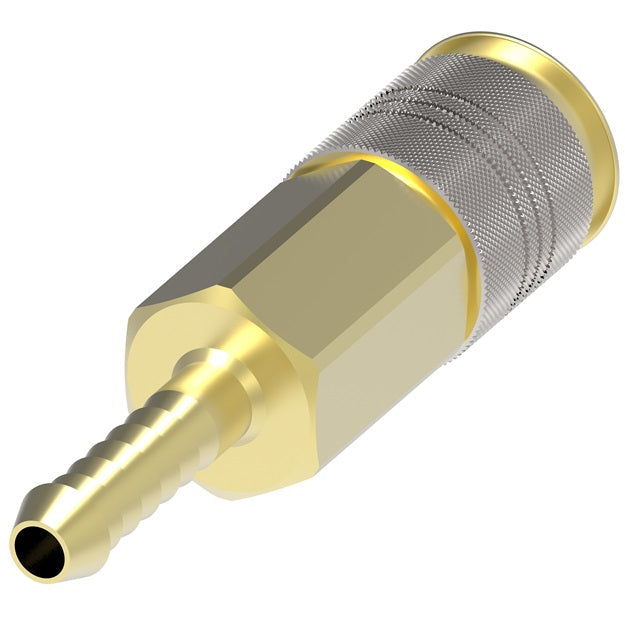

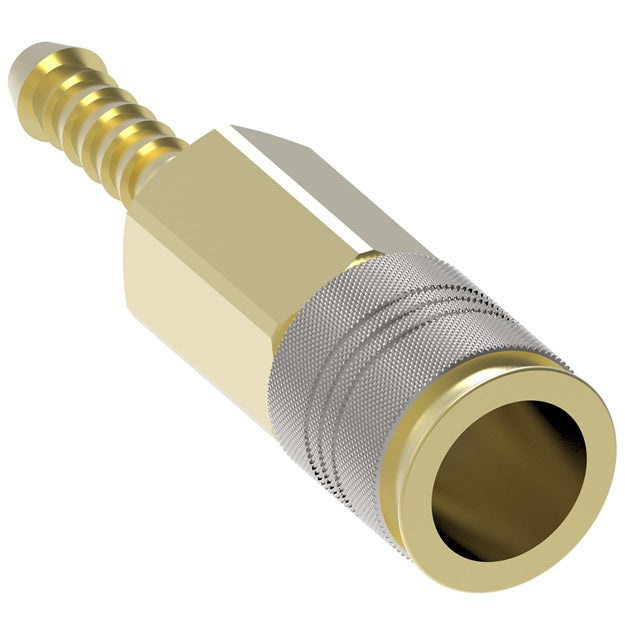

B23AS31H Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | Auto-Flo 23 Series | Hose Barb End | 5/16" Hose ID x 1/4" Body Size | Socket | Buna-N Seal | Brass

$21.55 - $21.55

$21.55

$21.55 - $21.55

$21.55

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | Auto-Flo 23 Series

Quick Disconnect for Pneumatic Applications.

Danfoss' Auto-Flo 23/24 Series of pneumatic couplings were designed with high flow and easy automatic connection for compressed air in mind.

The universal design makes the Auto-Flo an extremely flexible coupling series.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: B23AS31H Danfoss
Brand:	Hansen
Series:	Auto-Flo 23 Series
Shape (Orientation):	Straight
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Features:	Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket/female end of line. Sleeve guard protects against accidental disconnection.
Applications & Markets:	General Pneumatics Air Tools Construction
Materials:	Standard body material: Brass Standard seal material: Buna-N
Specifications:	Auto-Flo 23 is the first automatic universal quick disconnect coupling designed to operate with Industrial, ARO 210 and Tru-Flate Interchange plugs/males.

Series	Max. Operating Pressure		Min. Burst Pressure		Rated Flow
Auto-Flo 23	10 bar	150 psi	40 bar	600 psi	792 lpm	28 gpm
Auto-Flo 24	10 bar	150 psi	40 bar	600 psi	1,274 lpm	45 gpm

Interchangeability
Auto-Flo 23	Auto-Flo 24
US Industrial Interchange ISO 6150 Series B	(Euro Interchange)
A-A-59439 (former MIL-C-4109)	CEJN 320
Tru-Flate Interchange ARO 210 Interchange	RECTUS 25


Socket/Female (Figure 1)			Plug/Male (Figure 2)		Plug/Male (ARO 210) (Figure 3)		Plug/Male (Tru-Flate) (Figure 4)
Auto-Flo 23 Series \| Sockets
Part Number	Coupling Type	Body Size	Hose ID	End Type	Material	Figure	Dimensions
Part Number	Coupling Type	Body Size	Hose ID	End Type	Material	Figure	A	B
B23AS25H	Socket/Female	1/4"	1/4"	Hose Barb	Brass	1	2.76" (70.10mm)	0.96" (24.38mm)
B23AS31H	Socket/Female	1/4"	5/16"	Hose Barb	Brass	1	2.73" (69.34mm)	0.96" (24.38mm)
B23AS37H	Socket/Female	1/4"	3/8"	Hose Barb	Brass	1	2.73" (69.34mm)	0.96" (24.38mm)
B23AS50H	Socket/Female	1/4"	1/2"	Hose Barb	Brass	1	2.7" (68.58mm)	0.96" (24.38mm)
Auto-Flo 23 Series \| Plugs
Part Number	Coupling Type	Body Size	Hose ID	End Type	Material	Figure	Dimensions
Part Number	Coupling Type	Body Size	Hose ID	End Type	Material	Figure	A	B
16	Plug/Male	1/4"	1/4"	Hose Barb	Steel	2	2.22" (56.39mm)	0.50" (12.70mm)
16G**	Plug/Male	1/4"	1/4"	Hose Barb	Steel	2	2.97" (75.44mm)	0.77" (19.56mm)
16P	Plug/Male	1/4"	1/4"	Push-On Hose Barb	Steel	2	2.00" (50.80mm)	0.58" (14.73mm)
17	Plug/Male	1/4"	3/8"	Hose Barb	Steel	2	2.22" (56.39mm)	0.50" (12.70mm)
17G**	Plug/Male	1/4"	3/8"	Hose Barb	Steel	2	2.96" (75.18mm)	0.77" (19.56mm)
17P	Plug/Male	1/4"	3/8"	Push-On Hose Barb	Steel	2	2.06" (52.32mm)	0.50" (12.70mm)
18E	Plug/Male	1/4"	5/16"	Hose Barb	Steel	2	2.22" (56.39mm)	0.50" (12.70mm)
B17	Plug/Male	1/4"	3/8"	Hose Barb	Brass	2	2.22" (56.39mm)	0.50" (12.70mm)
3946	Plug/Male	1/4"	1/4"	Hose Barb	Steel	3	2.14" (54.36mm)	0.50" (12.70mm)
3947	Plug/Male	1/4"	5/16"	Hose Barb	Steel	3	2.14" (54.36mm)	0.5" (12.70mm)
22238E	Plug/Male	1/4"	3/8"	Hose Barb	Steel	3	2.14" (54.36mm)	0.50" (12.70mm)

** With Bleeder Ball Check - Reduces Hose Whip
