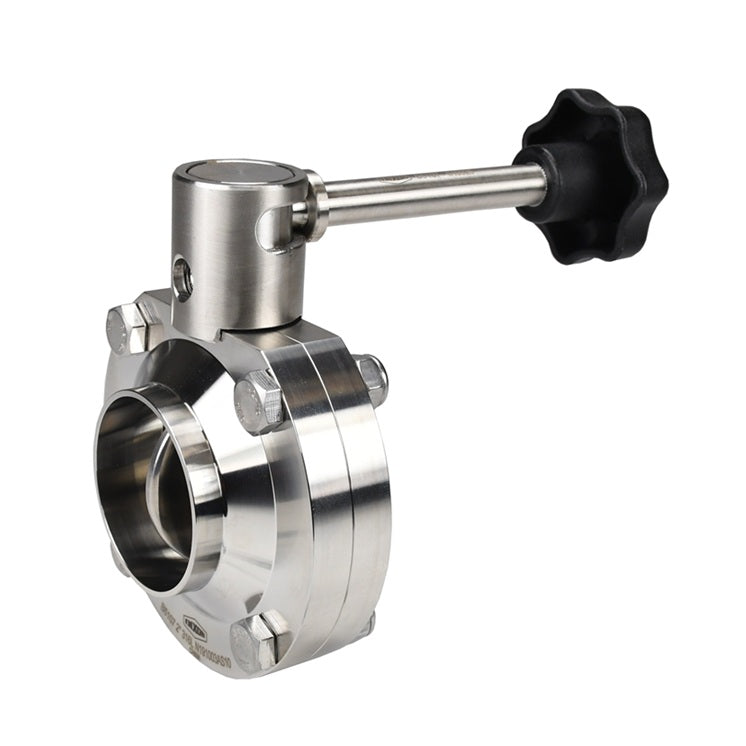

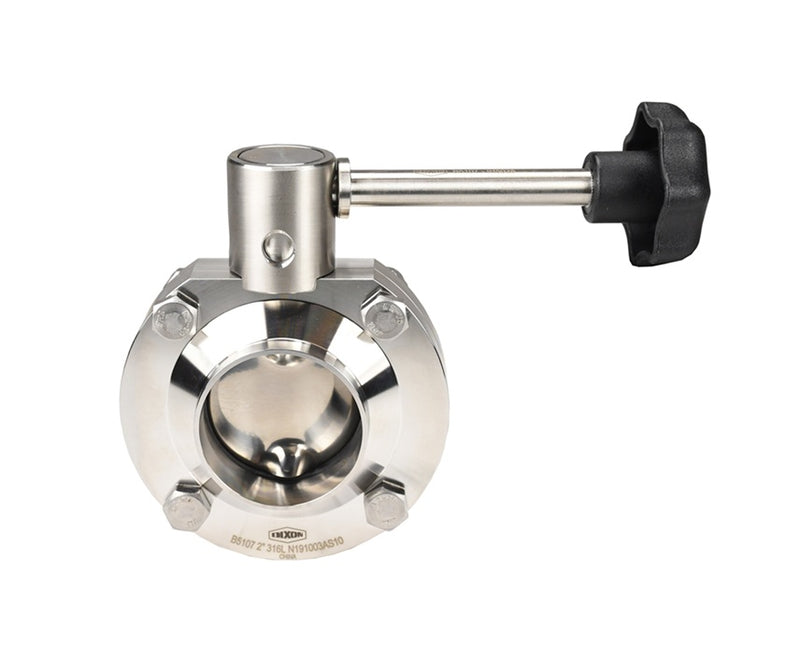

B5107V050BB-B Dixon Valve 1/2" 316L Stainless Steel Sanitary Weld End Butterfly Valve - Infinite Handle - FKM Seats
B5107V050BB-B Dixon Valve 1/2" 316L Stainless Steel Sanitary Weld End Butterfly Valve - Infinite Handle - FKM Seats

B5107V050BB-B Dixon Valve 1/2" 316L Stainless Steel Sanitary Weld End Butterfly Valve - Infinite Handle - FKM Seats

Save $125.30 Save $125.30
$313.25
$313.25 - $313.25
$313.25
$187.95
$187.95 - $187.95
$187.95

Dixon Sanitary Valves
Weld End Butterfly Valve with Infinite Handle [B] | 316L Stainless Steel with FKM Seats
Specifications for Variant SKU: B5107V050BB-B Dixon
Shape (Orientation): Straight
Ends Configuration: 1/2in Weld End, 1/2in Weld End, Some Ends Match
Material(s): 316L Stainless Steel
Seal Material(s): Viton/FKM
Features:
  • Robust disc stem.
  • Bi-directional flow.
  • Self lubricating seal.
  • Silicone and EPDM for valve sizes 1/2" to 4" have USP VI certification.
  • 100% hydraulic tested/inspected.
Materials:
  • Product contact material: 316L stainless steel
  • Seat: FKM
  • Seat lubricant: MOLYKOTE® 111
Specifications:
  • Vacuum rating: 0.4 inches Hg at 68°F (20°C)
  • Operating temperature range: 15°F to 200°F (-9°C to 93°C)
Part Number Size Dimensions

A
(in)		 B
(in)		 C
(in)		 D
(in)		 E
(in)		 F
(in)		 G
(in)
B5107V050BB-B 1/2" 1.87" 0.90" 3.10" 2.60" 4.90" 0.37" 0.50"
B5107V075BB-B 3/4" 1.87" 0.90" 3.10" 2.60" 4.90" 0.62" 0.75"
B5107V100BB-B 1" 1.87" 0.90" 3.10" 2.60" 4.90" 0.87" 1.00"
B5107V150BB-B 1-1/2" 1.87" 0.90" 3.10" 2.60" 4.90" 1.37" 1.50"
B5107V200BB-B 2" 2.06" 0.90" 3.90" 3.00" 4.90" 1.87" 2.00"
B5107V250BB-B 2-1/2" 2.12" 0.90" 4.60" 3.40" 4.90" 2.37" 2.50"
B5107V300BB-B 3" 2.50" 1.20" 5.20" 3.50" 6.60" 2.87" 3.00"
B5107V400BB-B 4" 3.18" 1.20" 6.70" 4.30" 6.60" 3.83" 4.00"
