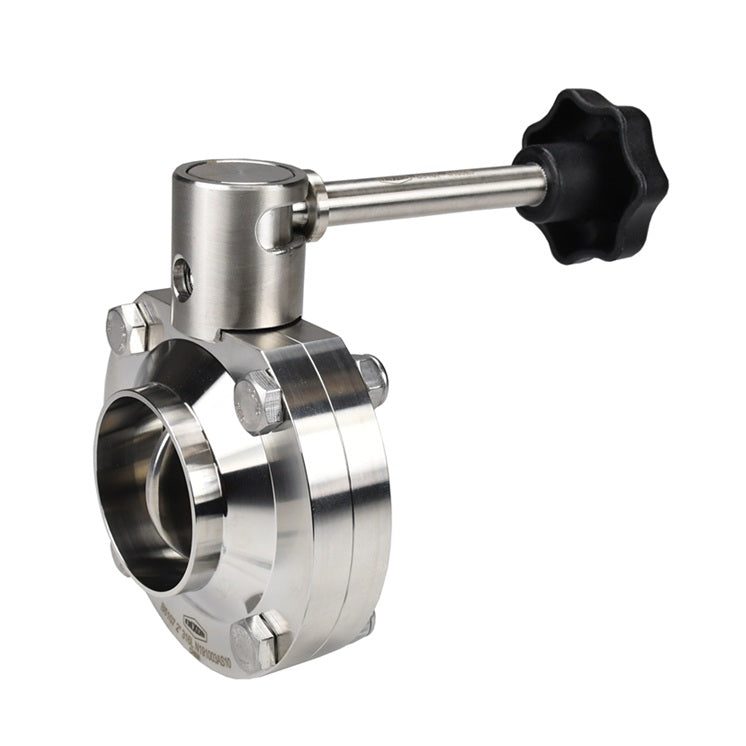

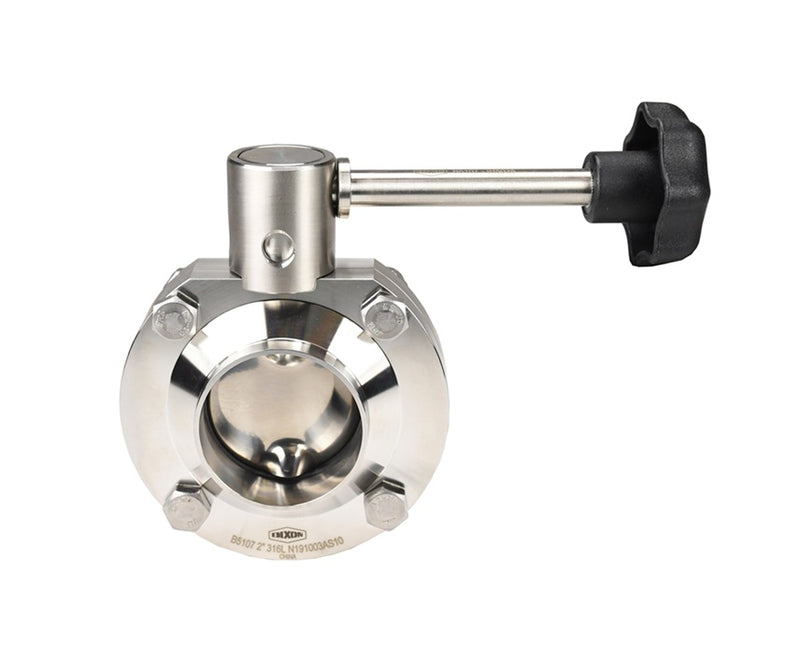

B5107V200BB-B Dixon Valve 2" 316L Stainless Steel Sanitary Weld End Butterfly Valve - Infinite Handle - FKM Seats

Name: B5107V200BB-B Dixon Valve 2" 316L Stainless Steel Sanitary Weld End Butterfly Valve - Infinite Handle - FKM Seats
Brand: Dixon
SKU: B5107V200BB-B Dixon
Price: 229.55 USD
Availability: InStock

Save $153.03

$382.58

$382.58 - $382.58

$382.58

$229.55

$229.55 - $229.55

$229.55

Dixon Sanitary Valves
Weld End Butterfly Valve with Infinite Handle [B] | 316L Stainless Steel with FKM Seats

Specifications for Variant SKU: B5107V200BB-B Dixon
Shape (Orientation):	Straight
Ends Configuration:	2in Weld End, 2in Weld End, Some Ends Match
Material(s):	316L Stainless Steel
Seal Material(s):	Viton/FKM

Features:
Robust disc stem. Bi-directional flow. Self lubricating seal. Silicone and EPDM for valve sizes 1/2" to 4" have USP VI certification. 100% hydraulic tested/inspected.
Materials:
Product contact material: 316L stainless steel Seat: FKM Seat lubricant: MOLYKOTE® 111
Specifications:
Vacuum rating: 0.4 inches Hg at 68°F (20°C) Operating temperature range: 15°F to 200°F (-9°C to 93°C)

Part Number	Size	Dimensions
Part Number	Size	A (in)	B (in)	C (in)	D (in)	E (in)	F (in)	G (in)
B5107V050BB-B	1/2"	1.87"	0.90"	3.10"	2.60"	4.90"	0.37"	0.50"
B5107V075BB-B	3/4"	1.87"	0.90"	3.10"	2.60"	4.90"	0.62"	0.75"
B5107V100BB-B	1"	1.87"	0.90"	3.10"	2.60"	4.90"	0.87"	1.00"
B5107V150BB-B	1-1/2"	1.87"	0.90"	3.10"	2.60"	4.90"	1.37"	1.50"
B5107V200BB-B	2"	2.06"	0.90"	3.90"	3.00"	4.90"	1.87"	2.00"
B5107V250BB-B	2-1/2"	2.12"	0.90"	4.60"	3.40"	4.90"	2.37"	2.50"
B5107V300BB-B	3"	2.50"	1.20"	5.20"	3.50"	6.60"	2.87"	3.00"
B5107V400BB-B	4"	3.18"	1.20"	6.70"	4.30"	6.60"	3.83"	4.00"
