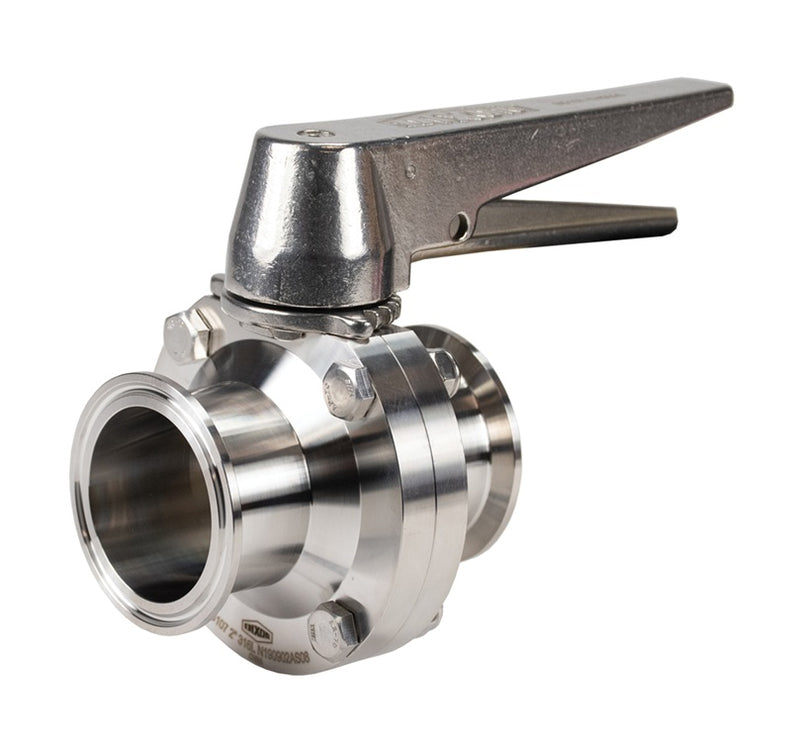

B5107V250CC-C Dixon Valve 2-1/2" 316L Stainless Steel Sanitary Clamp End Butterfly Valve - Trigger Handle - FKM Seats

B5107V250CC-C Dixon Valve 2-1/2" 316L Stainless Steel Sanitary Clamp End Butterfly Valve - Trigger Handle - FKM Seats

Save $247.41 Save $247.41
$618.52
$618.52 - $618.52
$618.52
$371.11
$371.11 - $371.11
$371.11

Dixon Sanitary Valves
Clamp End Butterfly Valve with Trigger Handle [C] | 316L Stainless Steel with FKM Seats
Specifications for Variant SKU: B5107V250CC-C Dixon
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Sanitary Clamp End, 2-1/2in Sanitary Clamp End, Some Ends Match
Material(s): 316L Stainless Steel
Seal Material(s): Viton/FKM
Features:
  • Robust disc stem.
  • Bi-directional flow.
  • Self lubricating seal.
  • Silicone and EPDM for valve sizes 1/2" to 4" have USP VI certification.
  • 100% hydraulic tested/inspected.
Materials:
  • Product contact material: 316L stainless steel
  • Seat: FKM
  • Seat lubricant: MOLYKOTE® 111
Specifications:
  • Vacuum rating: 0.4 inches Hg at 68°F (20°C)
  • Operating temperature range: 15°F to 200°F (-9°C to 93°C)
Part Number Size A
(in)		 B
(in)		 C
(in)		 D
(in)		 E
(in)
B5107V050CC-C 1/2" 3.50" 0.90" 3.10" 2.60" 5.90"
B5107V075CC-C 3/4" 3.50" 0.90" 3.10" 2.60" 5.90"
B5107V100CC-C 1" 3.50" 0.90" 3.10" 2.60" 5.90"
B5107V150CC-C 1-1/2" 3.50" 0.90" 3.10" 2.60" 5.90"
B5107V200CC-C 2" 3.80" 0.90" 3.90" 3.00" 5.90"
B5107V250CC-C 2-1/2" 3.80" 0.90" 4.60" 3.40" 5.90"
B5107V300CC-C 3" 4.10" 1.20" 5.20" 3.50" 5.90"
B5107V400CC-C 4" 4.80" 1.20" 6.70" 4.30" 5.90"
