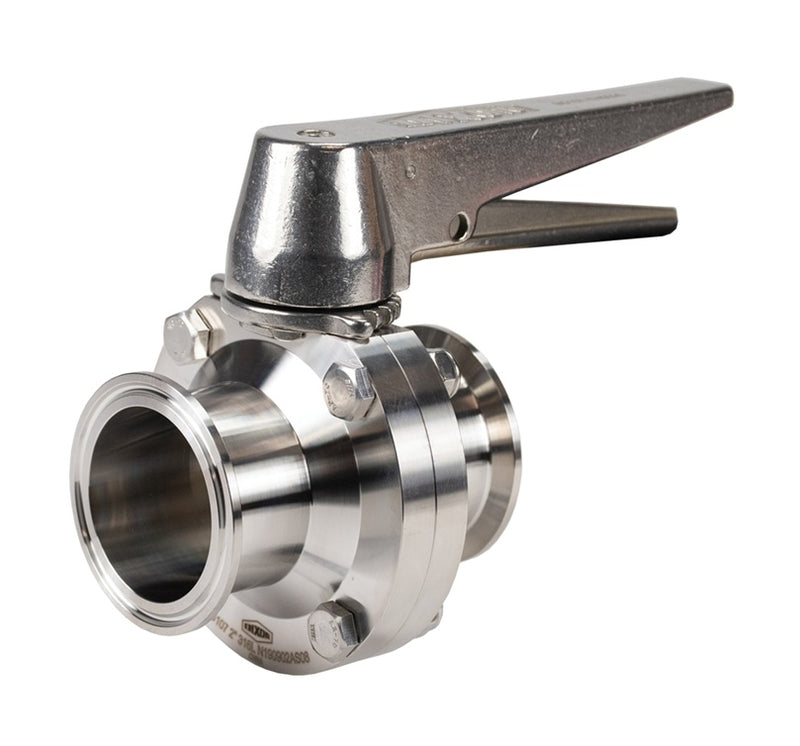

B5107V400CC-C Dixon Valve 4" 316L Stainless Steel Sanitary Clamp End Butterfly Valve - Trigger Handle - FKM Seats

Name: B5107V400CC-C Dixon Valve 4" 316L Stainless Steel Sanitary Clamp End Butterfly Valve - Trigger Handle - FKM Seats
Brand: Dixon
SKU: B5107V400CC-C Dixon
Price: 763.8 USD
Availability: InStock

Save $509.20

$1,273.00

$1,273.00 - $1,273.00

$1,273.00

$763.80

$763.80 - $763.80

$763.80

Dixon Sanitary Valves
Clamp End Butterfly Valve with Trigger Handle [C] | 316L Stainless Steel with FKM Seats

Specifications for Variant SKU: B5107V400CC-C Dixon
Shape (Orientation):	Straight
Ends Configuration:	4in Sanitary Clamp End, 4in Sanitary Clamp End, Some Ends Match
Material(s):	316L Stainless Steel
Seal Material(s):	Viton/FKM

Features:
Robust disc stem. Bi-directional flow. Self lubricating seal. Silicone and EPDM for valve sizes 1/2" to 4" have USP VI certification. 100% hydraulic tested/inspected.
Materials:
Product contact material: 316L stainless steel Seat: FKM Seat lubricant: MOLYKOTE® 111
Specifications:
Vacuum rating: 0.4 inches Hg at 68°F (20°C) Operating temperature range: 15°F to 200°F (-9°C to 93°C)


Part Number	Size	A (in)	B (in)	C (in)	D (in)	E (in)
B5107V050CC-C	1/2"	3.50"	0.90"	3.10"	2.60"	5.90"
B5107V075CC-C	3/4"	3.50"	0.90"	3.10"	2.60"	5.90"
B5107V100CC-C	1"	3.50"	0.90"	3.10"	2.60"	5.90"
B5107V150CC-C	1-1/2"	3.50"	0.90"	3.10"	2.60"	5.90"
B5107V200CC-C	2"	3.80"	0.90"	3.90"	3.00"	5.90"
B5107V250CC-C	2-1/2"	3.80"	0.90"	4.60"	3.40"	5.90"
B5107V300CC-C	3"	4.10"	1.20"	5.20"	3.50"	5.90"
B5107V400CC-C	4"	4.80"	1.20"	6.70"	4.30"	5.90"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
