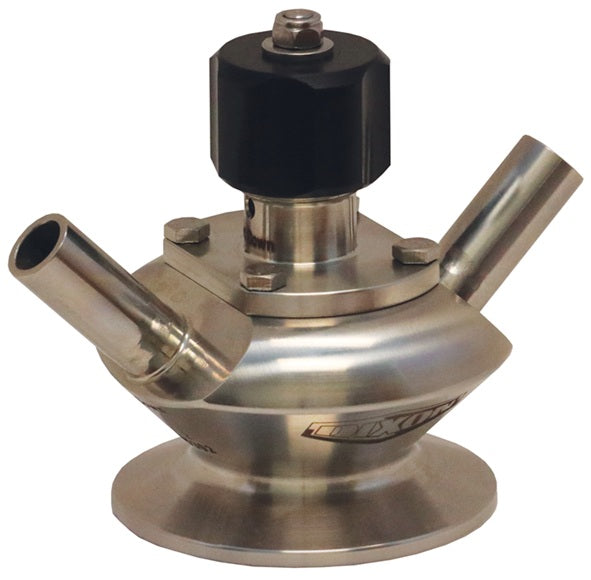

BSVD-HC400B375 Dixon Valve/Rieger 3A Sample Valve - Dual Port with Manual Handwheel - 4" Clamp Valve - 3/8" Weld Port

BSVD-HC400B375 Dixon Valve/Rieger 3A Sample Valve - Dual Port with Manual Handwheel - 4" Clamp Valve - 3/8" Weld Port

Save $96.55 Save $96.55
$868.92
$868.92 - $868.92
$868.92
$772.37
$772.37 - $772.37
$772.37

Dixon Sanitary Fittings Sanitary 3A Sample Valve with Manual Handle

The 3A sample valve allows easy and safe sampling of liquids from closed systems such as vessels and pipelines.

These valves are located in the pharmaceutical, bio-pharmaceutical, biochemical, cosmetic, food, dairy and beverage markets.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: BSVD-HC400B375 Dixon
Shape (Orientation): No Orientation
Material(s): 316L Stainless Steel, 304 Stainless Steel
Features:
  • Valve body made from solid bar
  • No dead space
  • Drainable
  • Connections suitable for orbital welding
  • Hermetically sealed against environment
  • Optimum cleanability
  • Change of seals without special tools
  • Long life of the PTFE-bellows
  • Low spare part costs
  • Manual actuator (hand wheel)
Materials:
  • In product contact: 1.4404/AISI 316L
  • Non product contact: 1.4301/AISI 304
  • Product contact seals: PTFE bellows
  • Surfaces: wetted product surfaces: Ra <= 32 (optional surface finishes available). Non product contact: Ra <= 63
Specifications:
  • Closing tension operating pressure: maximum 116 PSI
  • Hand wheel version operating pressure: minimum 87 PSI, maximum 232 PSI
  • Controlled air pressure: maximum 145 PSI
Single Port
Part Number		 Dual Port
Part Number		 Clamp Valve Size Weld Port Size
BSVS-HC050B025 BSVD-HC050B025 1/2" 1/4"
BSVS-HC050B375 BSVD-HC050B375 1/2" 3/8"
BSVS-HC050B050 BSVD-HC050B050 1/2" 1/2"
BSVS-HC100B025 BSVD-HC100B025 1" - 1-1/2" 1/4"
BSVS-HC100B375 BSVD-HC100B375 1" - 1-1/2" 3/8"
BSVS-HC100B050 BSVD-HC100B050 1" - 1-1/2" 1/2"
BSVS-HC150B025 - 1-1/2" 1/4"
BSVS-HC150B050 BSVD-HC150B050 1-1/2" 1/2"
BSVS-HC150B375 - 1-1/2" 3/8"
BSVS-HC200B025 BSVD-HC200B025 2" 1/4"
BSVS-HC200B375 BSVD-HC200B375 2" 3/8"
BSVS-HC200B050 BSVD-HC200B050 2" 1/2"
BSVS-HC250B025 BSVD-HC250B025 2-1/2" 1/4"
BSVS-HC250B375 BSVD-HC250B375 2-1/2" 3/8"
BSVS-HC250B050 BSVD-HC250B050 2-1/2" 1/2"
BSVS-HC300B025 BSVD-HC300B025 3" 1/4"
BSVS-HC300B375 BSVD-HC300B375 3" 3/8"
BSVS-HC300B050 BSVD-HC300B050 3" 1/2"
BSVS-HC400B025 BSVD-HC400B025 4" 1/4"
BSVS-HC400B375 BSVD-HC400B375 4" 3/8"
BSVS-HC400B050 BSVD-HC400B050 4" 1/2"
