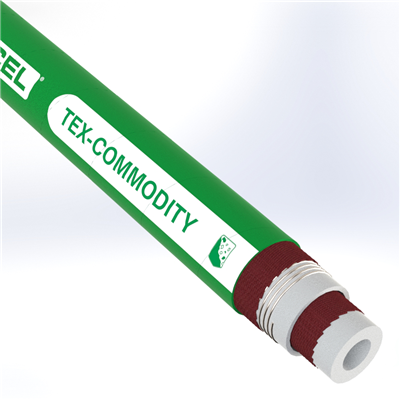

COMM-6.0-50 by Texcel | TEX-COMMODITY Series | FDA Commodity Hose | 6" Hose ID | 50 PSI | 25 in/Hg Vacuum Rated | Green

$116.33 - $4,846.73

$116.33

$83.09

$83.09 - $3,461.95

$83.09

Texcel
TEX-COMMODITY Series | FDA Commodity Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Quantity

Specifications for Variant SKU: COMM-6.0-50 Texcel \| 50 \|
Series:	TEX-COMMODITY Series
Hose Color(s):	Green
Internal Diameter:	6in
Outer Diameter:	6.92in
Tubing Construction:	Natural Rubber
Cover Construction:	SBR

Technical Data:
Description:	The "original Green Monster", TEX-COMMODITY is the premier material handling hose in the industry. Suitable for abrasive materials, wet or dry. Also used for foodstuffs, flour, plastic pellets, etc. Ideal for sandblast return operations. Tube meets FDA requirements for food and potable water.	Tube:	White, natural gum rubber
Cover:	Green, SBR	Reinforcement:	High tensile tire cord plies; dual helix on sizes 2”-4”; single helix on sizes 5”-12”
Safety Factor:	4:1	Temperature:	-40°F to +190°F
Branding:	TEXCEL® TEX-COMMODITY - FDA COMMODITY HOSE XXX PSI W.P.	Features:	Size 5"-12" are corrugated for extra flexibility Meets FDA requirements Superior abrasion resistance

Part Number	Hose ID	Hose OD	Tube Gauge	Working Pressure (psi)	Vacuum (in./HG)	Bend Radius	Lbs./Ft.
COMM-2.0-100	2"	2-54/64"	1/4"	150 psi	29	5"	2.60 lbs
COMM-2.5-100	2-1/2"	3-26/64"	1/4"	150 psi	29	8"	3.10 lbs
COMM-3.0-100	3"	3-56/64"	1/4"	150 psi	29	10.5"	3.62 lbs
COMM-4.0-100	4"	4-60/64"	1/4"	100 psi	29	12"	5.57 lbs
COMM-5.0-50	5"	5-60/64"	1/4"	75 psi	28	13.5"	7.00 lbs
COMM-6.0-50	6"	6-59/64"	5/16"	50 psi	25	15"	7.25 lbs
COMM-8.0-50	8"	9-6/64"	3/8"	50 psi	20	17"	10.80 lbs
COMM-10.0-25	10"	11-20/64"	3/8"	50 psi	20	19"	15.10 lbs
COMM-12.0-25	12"	13-28/64"	3/8"	50 psi	20	25"	18.20 lbs

Texcel

For all industrial hose and couplings, fluid sealing products, and hydraulic hose and fittings. Experts in the business for nearly 40 years.
