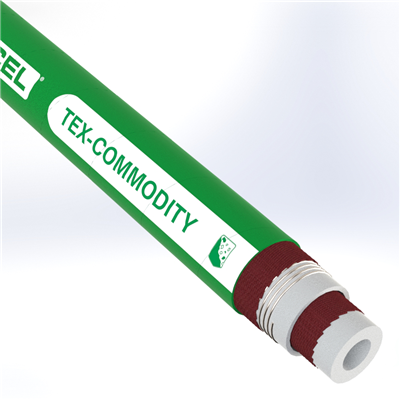

COMM-8.0-50 by Texcel | TEX-COMMODITY Series | FDA Commodity Hose | 8" Hose ID | 50 PSI | 20 in/Hg Vacuum Rated | Green

COMM-8.0-50 by Texcel | TEX-COMMODITY Series | FDA Commodity Hose | 8" Hose ID | 50 PSI | 20 in/Hg Vacuum Rated | Green

$166.07 - $6,919.68
$166.07
$118.62
$118.62 - $4,942.63
$118.62

Texcel
TEX-COMMODITY Series | FDA Commodity Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: COMM-8.0-50 Texcel | 50 |
Series: TEX-COMMODITY Series
Hose Color(s): Green
Internal Diameter: 8in
Outer Diameter: 9.09in
Tubing Construction: Natural Rubber
Cover Construction: SBR
Material Handling Hose

TEX-COMMODITY FDA Commodity Hose

The “original Green Monster,” TEX-COMMODITY is the premier material handling hose in the industry.

1

What is this hose used for?

Suitable for abrasive materials, wet or dry. Also used for foodstuffs, flour, plastic pellets and similar materials, and ideal for sandblast return operations. The tube meets FDA requirements for food and potable water.

  • Abrasive materials (wet or dry)
  • Foodstuffs
  • Flour
  • Plastic pellets
  • Sandblast return
2

What are the key specifications?
Tube

White, natural gum rubber

Cover

Green, SBR

Reinforcement

High tensile tire cord plies; dual helix on sizes 2" – 4"; single helix on sizes 5" – 12"

Temperature Range

-40°F to +190°F

Safety Factor

4:1

Branding

TEXCEL® TEX-COMMODITY - FDA COMMODITY HOSE XXX PSI W.P.

3

What are the main product features?
  • Meets FDA requirements — for food and potable water.
  • Superior abrasion resistance
  • Corrugated 5" – 12" sizes — for extra flexibility.
4

Which sizes are available?
Part Number Hose ID Hose OD Tube Gauge Working Pressure (psi) Vacuum (in. Hg) Bend Radius Weight (lbs/ft)
COMM-2.0-100 2" 2-54/64" 1/4" 150 29 5" 2.60
COMM-2.5-100 2-1/2" 3-26/64" 1/4" 150 29 8" 3.10
COMM-3.0-100 3" 3-56/64" 1/4" 150 29 10.5" 3.62
COMM-4.0-100 4" 4-60/64" 1/4" 100 29 12" 5.57
COMM-5.0-50 5" 5-60/64" 1/4" 75 28 13.5" 7.00
COMM-6.0-50 6" 6-59/64" 5/16" 50 25 15" 7.25
COMM-8.0-50 8" 9-6/64" 3/8" 50 20 17" 10.80
COMM-10.0-25 10" 11-20/64" 3/8" 50 20 19" 15.10
COMM-12.0-25 12" 13-28/64" 3/8" 50 20 25" 18.20
