20026035 Insta-Grip™ by ContiTech | 250 Push-On Air / Multipurpose Hose | Continental | 0.625" (5/8") ID | 250 PSI | Black | 500ft

20026035 Insta-Grip™ by ContiTech | 250 Push-On Air / Multipurpose Hose | Continental | 0.625" (5/8") ID | 250 PSI | Black | 500ft

$1,738.30 - $1,738.30
$1,738.30
$1,760.80
$1,760.80 - $1,760.80
$1,760.80

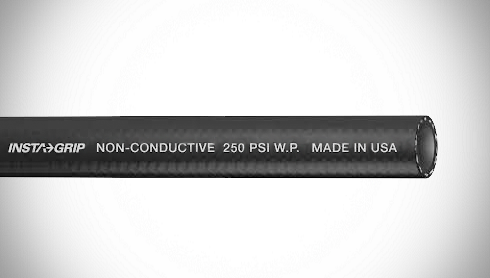

Continental ContiTech Insta-Grip™ 250 Push-on Air & Multipurpose Hose

For industrial service with push-on fittings at working pressures of 250 psi. Non-conductive, minimum electrical resistance greater than 1 megohm per inch of hose length at 1000 volts DC.

Package Quantity: 500 FT

Specifications for Variant SKU: 20026035 ContiTech | 500 |
Brand: Insta-Grip 250
Series: Insta-Grip 250
Hose Color(s): Black
Internal Diameter: 0.625in
Outer Diameter: 0.94in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber

SPECIFICATIONS

Application: Industrial service. SAE Rating: N/A
Other Ratings: N/A Tube: Chemivic oil and heat-resistant synthetic rubber, ARPM Class A (High Oil Resistance)
Reinforcement: Spiral aramid yarn Cover: Chemivic, ARPM Class B (Medium Oil Resistance)
Temperature Range: -20°F to 210°F (-29°C to 99°C) Fittings: N/A
Branding: Insta-Grip™ Non-conductive 3/8" (9.5 mm) 250 psi WP Made in USA Continental ContiTech
Red
Part Number		 Black
Part Number		 Green
Part Number		 Gray
Part Number		 Inside
Diameter		 Nominal Outside
Diameter		 Max. Working
Pressure		 Length Weight Red
Order Code		 Black
Order Code		 Green
Order Code		 Gray
Order Code
in. mm in. mm PSI MPa lb./ft. kg/m
20025988 20026001 20026043 20160048 1/4" 6.4mm 0.51" 12.7mm 250 PSI 1.72 MPa 500ft 0.08 lbs./ft. 0.12 kg/m 56901306400200 56901406400200 56901506400200 56901606400200
20025994 20026012 20026046 20026055 3/8" 9.5mm 0.65" 16.5mm 250 PSI 1.72 MPa 500ft 0.12 lbs./ft. 0.18 kg/m 56901309500200 56901409500200 56901509500200 56901609500200
20025999 20026030 20026050 20026057 1/2" 12.7mm 0.80" 20.3mm 250 PSI 1.72 MPa 500ft 0.17 lbs./ft. 0.25 kg/m 56901312700200 56901412700200 56901512700200 56901612700200
- 20026035 - 20195088 5/8" 15.9mm 0.94" 23.9mm 250 PSI 1.72 MPa 500ft 0.23 lbs./ft. 0.34 kg/m - 56901415900200 - 56901615900200
- 20026037 - 20195089 3/4" 19.1mm 1.08" 27.4mm 250 PSI 1.72 MPa 50ft 0.28 lbs./ft. 0.42 kg/m - 56901419100200 - 56901619100200

Hose design ratio (burst pressure) 4:1.

Continental ContiTech

Continental ContiTech

ContiTech specializes in the engineering and distribution of innovative, reliable and high-performance industrial hose products for a vast array of industrial, commercial and residential applications. They are used in machine and plant engineering, mining, agriculture, the automotive industry, and other important sectors of the future.
