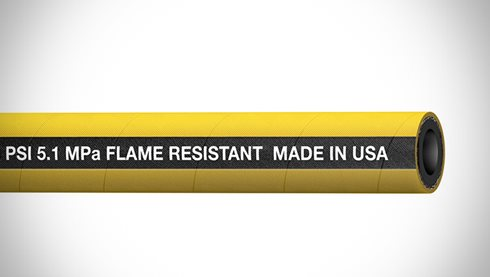

20316407 Steel Air by ContiTech | Heavy Duty Air / Multipurpose Hose | Continental | (MSHA IC 11/7) | 2.00" (2") ID | 500 PSI | Yellow | 50ft

Minimum Order Quantity: 8 Lengths

Save $739.45

$1,848.63

$1,848.63 - $1,848.63

$1,848.63

$1,109.18

$1,109.18 - $1,109.18

$1,109.18

Continental ContiTech Super Steel Air Heavy Duty Air & Multipurpose Hose

A heavy-duty, wrapped finish, single wire braid or spiral ply wire air hose for higher pressure service in severe industrial applications, including service in mines, quarries and construction jobs.

Package Quantity: 50 FT

Specifications for Variant SKU: 20316407 ContiTech \| 50 \|
Brand:	Steel Air
Series:	Steel Air
Hose Color(s):	Yellow
Internal Diameter:	2in
Outer Diameter:	2.66in
Tubing Construction:	Nitrile
Cover Construction:	Synthetic Rubber
Applicable Specs & Approvals:	MSHA 2G-IC-11C/17

Application:	High pressure service, mines, quarries and construction.	SAE Rating:	N/A
Other Ratings:	1/2"-1-1/2": MSHA 2G-IC-14C/38 2"-4": MSHA IC 11/7	Tube:	Black nitrile synthetic rubber, ARPM Class B (Medium Oil Resistance)
Reinforcement:	1/2"-1-1/2": One braided steel wire 2"-4": Spiral-plied steel wire	Cover:	Yellow Chemivic synthetic rubber (wrapped impression), ARPM Class B (Medium Oil Resistance), MSHA approved
Temperature Range:	-40°F to 210°F (-40°C to 99°C)	Fittings:	N/A
Branding:	Continental ContiTech Steel Air 500 psi 3.4 MPa 2" (50.8 mm)

Yellow Part Number	Inside Diameter		Nominal Outside Diameter		Max. Working Pressure		Length	Weight		Yellow Order Code
Yellow Part Number	in.	mm	in.	mm	PSI	MPa	Length	lb./ft.	kg/m	Yellow Order Code
20174709	1/2"	12.7mm	0.91"	23.1mm	750 PSI	5.17 MPa	50ft	0.34 lbs./ft.	0.51 kg/m	53915901605000
20174720	1/2"	12.7mm	0.91"	23.1mm	750 PSI	5.17 MPa	100ft	0.34 lbs./ft.	0.51 kg/m	53915901610000

20174723	3/4"	19.1mm	1.14"	29.0mm	750 PSI	5.17 MPa	50ft	0.45 lbs./ft.	0.67 kg/m	53915902405000
20174724	3/4"	19.1mm	1.14"	29.0mm	750 PSI	5.17 MPa	100ft	0.45 lbs./ft.	0.67 kg/m	53915902410000

20174774	1"	25.4mm	1.45"	36.6mm	750 PSI	5.17 MPa	50ft	0.66 lbs./ft.	1.00 kg/m	53915903205000
20018776	1"	25.4mm	1.45"	36.6mm	750 PSI	5.17 MPa	100ft	0.66 lbs./ft.	1.00 kg/m	53915903210000

20317183	1-1/2"	38.1mm	1.98"	50.2mm	500 PSI	3.45 MPa	100ft	0.97 lbs./ft.	1.44 kg/m	53915904810000

20316407	2"	50.8mm	2.66"	67.6mm	500 PSI	3.45 MPa	50ft	1.59 lbs./ft.	2.36 kg/m	54920906400500
20316409	2"	50.8mm	2.66"	67.6mm	500 PSI	3.45 MPa	100ft	1.59 lbs./ft.	2.36 kg/m	54920906401000

20817755	3"	76.2mm	3.81"	96.8mm	500 PSI	3.45 MPa	100ft	3.07 lbs./ft.	4.57 kg/m	54920910701000

Hose design ratio (burst pressure) 4:1.

Continental ContiTech

ContiTech specializes in the engineering and distribution of innovative, reliable and high-performance industrial hose products for a vast array of industrial, commercial and residential applications. They are used in machine and plant engineering, mining, agriculture, the automotive industry, and other important sectors of the future.
