20817755 Steel Air by ContiTech | Heavy Duty Air / Multipurpose Hose | Continental | (MSHA IC 11/7) | 3.00" (3") ID | 500 PSI | Yellow | 100ft

20817755 Steel Air by ContiTech | Heavy Duty Air / Multipurpose Hose | Continental | (MSHA IC 11/7) | 3.00" (3") ID | 500 PSI | Yellow | 100ft

Save $2,902.43 Save $2,902.43
$7,256.07
$7,256.07 - $7,256.07
$7,256.07
$4,353.64
$4,353.64 - $4,353.64
$4,353.64

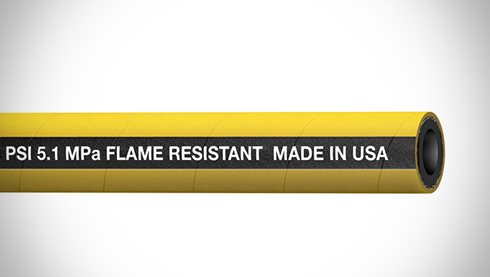

Continental ContiTech Super Steel Air Heavy Duty Air & Multipurpose Hose

A heavy-duty, wrapped finish, single wire braid or spiral ply wire air hose for higher pressure service in severe industrial applications, including service in mines, quarries and construction jobs.

Package Quantity: 100 FT

Specifications for Variant SKU: 20817755 ContiTech | 100 |
Brand: Steel Air
Series: Steel Air
Hose Color(s): Yellow
Internal Diameter: 3in
Outer Diameter: 3.81in
Tubing Construction: Nitrile
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: MSHA 2G-IC-11C/17

SPECIFICATIONS

Application: High pressure service, mines, quarries and construction. SAE Rating: N/A
Other Ratings: 1/2"-1-1/2": MSHA 2G-IC-14C/38
2"-4": MSHA IC 11/7		 Tube: Black nitrile synthetic rubber, ARPM Class B (Medium Oil Resistance)
Reinforcement: 1/2"-1-1/2": One braided steel wire
2"-4": Spiral-plied steel wire		 Cover: Yellow Chemivic synthetic rubber (wrapped impression), ARPM Class B (Medium Oil Resistance), MSHA approved
Temperature Range: -40°F to 210°F (-40°C to 99°C) Fittings: N/A
Branding: Continental ContiTech Steel Air 500 psi 3.4 MPa 2" (50.8 mm)
Yellow
Part Number		 Inside
Diameter		 Nominal Outside
Diameter		 Max. Working
Pressure		 Length Weight Yellow
Order Code
in. mm in. mm PSI MPa lb./ft. kg/m
20174709 1/2" 12.7mm 0.91" 23.1mm 750 PSI 5.17 MPa 50ft 0.34 lbs./ft. 0.51 kg/m 53915901605000
20174720 1/2" 12.7mm 0.91" 23.1mm 750 PSI 5.17 MPa 100ft 0.34 lbs./ft. 0.51 kg/m 53915901610000
20174723 3/4" 19.1mm 1.14" 29.0mm 750 PSI 5.17 MPa 50ft 0.45 lbs./ft. 0.67 kg/m 53915902405000
20174724 3/4" 19.1mm 1.14" 29.0mm 750 PSI 5.17 MPa 100ft 0.45 lbs./ft. 0.67 kg/m 53915902410000
20174774 1" 25.4mm 1.45" 36.6mm 750 PSI 5.17 MPa 50ft 0.66 lbs./ft. 1.00 kg/m 53915903205000
20018776 1" 25.4mm 1.45" 36.6mm 750 PSI 5.17 MPa 100ft 0.66 lbs./ft. 1.00 kg/m 53915903210000
20317183 1-1/2" 38.1mm 1.98" 50.2mm 500 PSI 3.45 MPa 100ft 0.97 lbs./ft. 1.44 kg/m 53915904810000
20316407 2" 50.8mm 2.66" 67.6mm 500 PSI 3.45 MPa 50ft 1.59 lbs./ft. 2.36 kg/m 54920906400500
20316409 2" 50.8mm 2.66" 67.6mm 500 PSI 3.45 MPa 100ft 1.59 lbs./ft. 2.36 kg/m 54920906401000
20817755 3" 76.2mm 3.81" 96.8mm 500 PSI 3.45 MPa 100ft 3.07 lbs./ft. 4.57 kg/m 54920910701000

Hose design ratio (burst pressure) 4:1.

Continental ContiTech

Continental ContiTech

ContiTech specializes in the engineering and distribution of innovative, reliable and high-performance industrial hose products for a vast array of industrial, commercial and residential applications. They are used in machine and plant engineering, mining, agriculture, the automotive industry, and other important sectors of the future.
