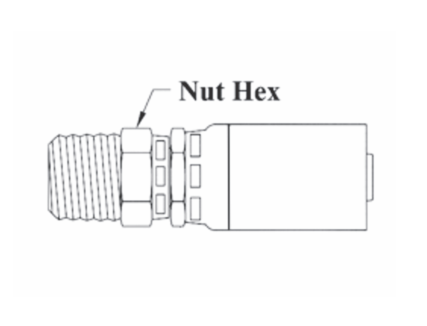

CS04-6X6 Couplamatic VARI-CRIMP Coupling - NPTF - Male Swivel - 3/8" Hose ID - 3/8-18Thread (Old Part Number: 609V)

CS04-6X6 by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x 3/8-18 Thread Male Swivel NPTF | Straight | Trivalent Zinc Plating | Replaces: 609V | Pack of 20

Save $11.41 Save $11.41
$102.69
$102.69 - $102.69
$102.69
$91.28
$91.28 - $91.28
$91.28

Couplamatic Systems Inc.
Vari-Crimp Couplings - NPTF - Male Swivel

Package Quantity: 20 EA

Specifications for Variant SKU: CS04-6X6 Couplamatic | 20 |
Series: VARI-CRIMP Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Male NPTF, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
  • Swivel for installation purposes only. Leakage may occur at low pressure.
Part Number Hose ID Pipe Size Thread Size Hex Size Nut Hex Previous Part Number Cross Reference Part Numbers
Dayco HY Weatherhead U
CS04-4X2 1/4" 1/8" 1/8-27 9/16" 5/8" 462V HY04-02SP 04U-J02
CS04-4X4 1/4" 1/4" 1/4-18 9/16" 5/8" 406V HY04-04SP 04U-J04
CS04-4X6 1/4" 3/8" 3/8-18 11/16" 3/4" 466V HY04-06SP -
CS04-6X4 3/8" 1/4" 1/4-18 11/16" 3/4" 666V HY06-04SP 06U-J04
CS04-6X6 3/8" 3/8" 3/8-18 11/16" 3/4" 609V HY06-06SP 06U-J06
CS04-6X8 3/8" 1/2" 1/2-14 3/4" 7/8" 651V HY06-08SP 06U-J08
CS04-8X6 1/2" 3/8" 3/8-18 13/16" 3/4" 857V HY08-06SP 08U-J06
CS04-8X8 1/2" 1/2" 1/2-14 13/16" 7/8" 809V HY08-08SP 08U-J08
CS04-12X12 3/4" 3/4" 3/4-14 1-1/8" 1-1/4" 1209V HY12-12SP 12U-J12
CS04-16X16 1" 1" 1/11-1/2 1-3/8" 1-3/8" 1609V HY16-16SP 16U-J16
