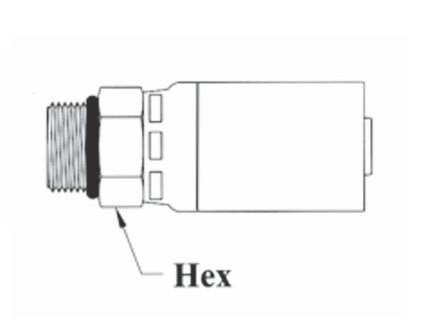

CS11-6X8 Couplamatic VARI-CRIMP Coupling - ORB - Male Solid - 3/8" Hose ID - 3/4x16 Thread (Old Part Number: 639V)

CS11-6X8 by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x 3/4x16 Thread ORB Male Solid | Straight | Trivalent Zinc Plating | Replaces: 639V | Pack of 20

Save $51.46 Save $51.46
$128.65
$128.65 - $128.65
$128.65
$77.19
$77.19 - $77.19
$77.19

Couplamatic Systems Inc.
Vari-Crimp Couplings - ORB - Male Solid

Package Quantity: 20 EA

Specifications for Variant SKU: CS11-6X8 Couplamatic | 20 |
Series: VARI-CRIMP Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Male O-Ring Boss, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
Part Number Hose ID Thread Size Tube OD Hex Size Previous Part Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS11-4X4 1/4" 7/16x20 1/4" 9/16" 451V HY04-04RA 105HY-4-4 04U-P04
CS11-4X5 1/4" 1/2x20 5/16" 5/8" 454V HY04-05RA 105HY-5-4 04U-P05
CS11-4X6 1/4" 9/16x18 3/8" 11/16" 448V HY04-06RA 105HY-6-4 04U-P06
CS11-6X6 3/8" 9/16x18 3/8" 11/16" 636V HY06-06RA 105HY-6-6 06U-P06
CS11-6X8 3/8" 3/4x16 1/2" 7/8" 639V HY06-08RA 105HY-8-6 06U-P08
CS11-6X10 3/8" 7/8x14 5/8" 1" 642V HY06-10RA 105HY-10-6 06U-P10
CS11-8X8 1/2" 3/4x16 1/2" 7/8" 830V HY08-08RA 105HY-8-8 08U-P08
CS11-8X10 1/2" 7/8x14 5/8" 1" 833V HY08-10RA 105HY-10-8 08U-P10
CS11-8X12 1/2" 1-1/16x12 3/4" 1-1/4" 860V HY08-12RA 105HY-12-8 08U-P12
CS11-10X8 5/8" 3/4x16 1/2" 15/16" 1030V HY10-08RA - 10U-P08
CS11-10X10 5/8" 7/8x14 5/8" 1" 1033V HY10-10RA 105HY-10-10 10U-P10
CS11-10X12 5/8" 1-1/16x12 3/4" 1-1/4" 1036V - - 10U-P12
CS11-12X10 3/4" 7/8x14 5/8" 1-1/8" 1248V HY12-10RA 105HY-10-12 12U-P10
CS11-12X12 3/4" 1-1/16x12 3/4" 1-1/4" 1227V HY12-12RA 105HY-12-12 12U-P12
CS11-16X16 1" 1-5/16x12 1" 1-1/2" 1630V HY16-16RA 105HY-16-16 16U-P16

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.

Shop Parts by Couplamatic Systems Inc
