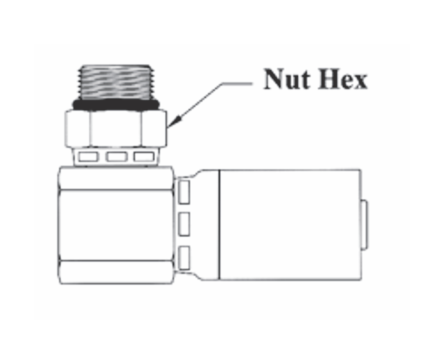

CS15-6X6 Couplamatic VARI-CRIMP Coupling - ORB - Male Swivel 90° - 3/8" Hose ID - 9/16x18 Thread (Old Part Number: 6278V)

CS15-6X6 by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x 9/16x18 Thread ORB Male Swivel | 90° Elbow | Trivalent Zinc Plating | Replaces: 6278V

Save $7.68

$19.20

$19.20 - $19.20

$19.20

$11.52

$11.52 - $11.52

$11.52

Couplamatic Systems Inc.
Vari-Crimp Couplings - ORB - Male Swivel 90°

Specifications for Variant SKU: CS15-6X6 Couplamatic
Series:	VARI-CRIMP Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/8in Male O-Ring Boss, 3/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Vari-Crimp — Universal Crimp

CS15 Vari-Crimp — ORB, Male Swivel, 90° Elbow

CS15 is the ORB, Male Swivel, 90° Elbow configuration of the Vari-Crimp system, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, Hy-Plus I and III, 100R16/2SC, Dura-Hyd R16 and EX, 100R17, Dura-Hyd R17, 100R3 and 100R4 hose.

1

What are the main product features?

The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
Fits virtually every crimp machine — the most universally crimpable coupling system in the line.
One system across the braid hose range — terminates one and two wire braid hose from 1/4" up.
For 1-1/2" and 2" 100R2 thin cover — use the GW Series spiral hose couplings instead.

2

Which sizes are available?

Part Number	Hose ID	Pipe Size	Thread Size	Nut Hex	Previous Part Number	Cross Reference Part Numbers
Part Number	Hose ID	Pipe Size	Thread Size	Nut Hex	Previous Part Number	Dayco HY	Parker HY	Weatherhead U
CS15-6X6	3/8"	9/16x18	3/8"	3/4"	6278V	HY06-06RC90	10LHY-6-6	06U-R66
CS15-6X8	3/8"	3/4x16	1/2"	7/8"	6245V	HY06-08RC90	10LHY-8-6	06U-R68
CS15-6X10	3/8"	7/8x14	5/8"	1"	6242V	—	—	06U-R70
CS15-8X8	1/2"	3/4x16	1/2"	7/8"	8236V	HY08-08RC90	10LHY-8-8	08U-R68
CS15-8X10	1/2"	7/8x14	5/8"	1"	8239V	HY08-10RC90	10LHY-10-8	08U-R70
CS15-12X12	3/4"	1-1/16x12	3/4"	1-1/4"	12239V	HY12-12RC90	10LHY-12-12	12U-R72
CS15-16X16	1"	1-5/16x12	1"	1-1/2"	16239V	—	—	—

i

- Swivel for installation purposes only. Leakage may occur at low pressure. The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
