CS16-12X12 Couplamatic VARI-CRIMP Coupling - NPTF - Female Swivel - 3/4" Hose ID - 3/4-14 Thread (Old Part Number: 1284V)

CS16-12X12 by Couplamatic | VARI-CRIMP Coupling | 3/4" Hose ID x 3/4-14 Thread Female Swivel NPTF | Straight | Trivalent Zinc Plating | Replaces: 1284V

Save $14.85 Save $14.85
$37.12
$37.12 - $37.12
$37.12
$22.27
$22.27 - $22.27
$22.27

Couplamatic Systems Inc.
Vari-Crimp Couplings - NPTF - Female Swivel
Specifications for Variant SKU: CS16-12X12 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Female NPTF, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Vari-Crimp — Universal Crimp

CS16 Vari-Crimp — NPTF, Female Swivel, Straight

CS16 is the NPTF, Female Swivel, Straight configuration of the Vari-Crimp system, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, Hy-Plus I and III, 100R16/2SC, Dura-Hyd R16 and EX, 100R17, Dura-Hyd R17, 100R3 and 100R4 hose.

1

What are the main product features?
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
  • Swivel for installation purposes only. Leakage may occur at low pressure.
  • Fits virtually every crimp machine — the most universally crimpable coupling system in the line.
  • One system across the braid hose range — terminates one and two wire braid hose from 1/4" up.
  • For 1-1/2" and 2" 100R2 thin cover — use the GW Series spiral hose couplings instead.
2

Which sizes are available?

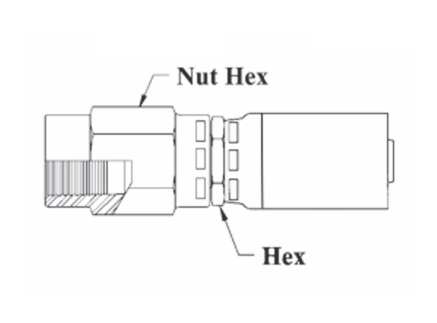

Part Number Hose ID Pipe Size Thread Size Hex Size Nut Hex Previous Part Number Cross Reference Part Numbers
Parker HY Weatherhead U
CS16-4X4 1/4" 1/4" 1/4-18 5/8" 3/4" 484V — 04U-254
CS16-6X6 3/8" 3/8" 3/8-18 11/16" 7/8" 684V — 06U-256
CS16-8X8 1/2" 1/2" 1/2-14 7/8" 1" 884V — 08U-258
CS16-12X12 3/4" 3/4" 3/4-14 1-1/8" 1-1/4" 1284V 1S2HY-12-12 12U-262
i
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
