CS16-8X8 Couplamatic VARI-CRIMP Coupling - NPTF - Female Swivel - 1/2" Hose ID - 1/2-14 Thread (Old Part Number: 884V)

CS16-8X8 by Couplamatic | VARI-CRIMP Coupling | 1/2" Hose ID x 1/2-14 Thread Female Swivel NPTF | Straight | Trivalent Zinc Plating | Replaces: 884V

Save $9.46 Save $9.46
$23.65
$23.65 - $23.65
$23.65
$14.19
$14.19 - $14.19
$14.19

Couplamatic Systems Inc.
Vari-Crimp Couplings - NPTF - Female Swivel
Specifications for Variant SKU: CS16-8X8 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Female NPTF, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
  • Swivel for installation purposes only. Leakage may occur at low pressure.

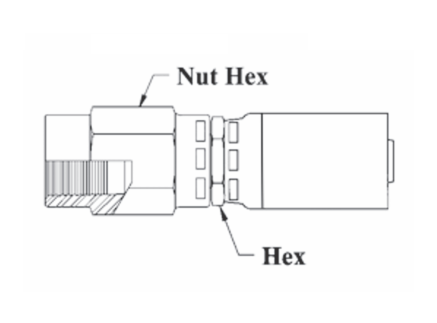

Part Number Hose ID Pipe Size Thread Size Hex Size Nut Hex Previous Part Number Cross Reference Part Numbers
Parker HY Weatherhead U
CS16-4X4 1/4" 1/4" 1/4-18 5/8" 3/4" 484V - 04U-254
CS16-6X6 3/8" 3/8" 3/8-18 11/16" 7/8" 684V - 06U-256
CS16-8X8 1/2" 1/2" 1/2-14 7/8" 1" 884V - 08U-258
CS16-12X12 3/4" 3/4" 3/4-14 1-1/8" 1-1/4" 1284V 1S2HY-12-12 12U-262

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
