CS27-4X5 Couplamatic VARI-CRIMP Coupling - JIC/SAE Dual Seat - 90° Female Swivel Long Drop - 1/4" Hose ID - 1/2x20 Thread (Old Part Number: 4166V)

CS27-4X5 by Couplamatic | VARI-CRIMP Coupling | 1/4" Hose ID x 1/2x20 Thread JIC/SAE Dual Seat Female Swivel Long Drop | 90° Elbow | Trivalent Zinc Plating | Replaces: 4166V

Save $6.38 Save $6.38
$15.95
$15.95 - $15.95
$15.95
$9.57
$9.57 - $9.57
$9.57

Couplamatic Systems Inc.
Vari-Crimp Couplings - JIC/SAE Dual Seat - 90° Female Swivel Long Drop
Specifications for Variant SKU: CS27-4X5 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): 90 Degree
Ends Configuration: 5/16in Female JIC, 1/4in Hose Barb, 5/16in Female SAE 45 Flare
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Vari-Crimp — Universal Crimp

CS27 Vari-Crimp — JIC, Female Swivel, Long Drop 90° Elbow

CS27 is the JIC, Female Swivel, Long Drop 90° Elbow configuration of the Vari-Crimp system, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, Hy-Plus I and III, 100R16/2SC, Dura-Hyd R16 and EX, 100R17, Dura-Hyd R17, 100R3 and 100R4 hose.

1

What are the main product features?
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
  • Fits virtually every crimp machine — the most universally crimpable coupling system in the line.
  • One system across the braid hose range — terminates one and two wire braid hose from 1/4" up.
  • For 1-1/2" and 2" 100R2 thin cover — use the GW Series spiral hose couplings instead.
2

Which sizes are available?

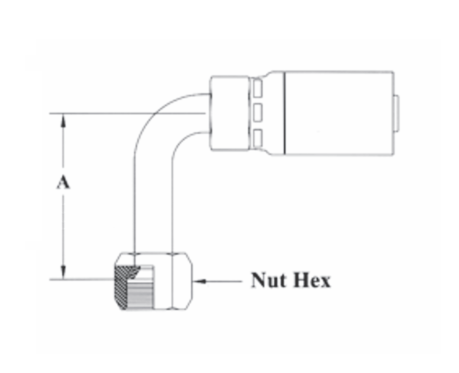

Part Number Hose ID Thread Size Tube OD A-Drop Inches Nut Hex Previous Part Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS27-4X4 1/4" 7/16x20 1/4" 1.80" 9/16" 4163V HY04-04FJ90TL 141HY-4-4 04U-644
CS27-4X5 1/4" 1/2x20 5/16" 1.80 5/8" 4166V — — —
CS27-4X6* 1/4" 9/16x18 3/8" 2.18 11/16" 4178V* HY04-06FJ90TL 141HY-6-4 —
CS27-6X4 3/8" 7/16x20 1/4" 1.80 9/16" 6190V — — 06U-644
CS27-6X6* 3/8" 9/16x18 3/8" 2.18 11/16" 6166V* HY06-06FJ90TL 141HY-6-6 06U-646
CS27-6X8 3/8" 3/4x16 1/2" 2.50 7/8" 6124V — — 06U-648
CS27-8X8 1/2" 3/4x16 1/2" 2.50 7/8" 8163V HY08-08FJ90TL 141HY-8-8 08U-648
CS27-8X10 1/2" 7/8x14 5/8" 2.75 1" 8166V HY08-10FJ90TL 141HY-10-8 08U-650
CS27-10X10 5/8" 7/8x14 5/8" 2.75 1" 1069V — — —
CS27-12X12 3/4" 1-1/16x12 3/4" 3.73 1-1/4" 12657V* HY12-12FJ90TL 141HY-12-12 12U-652
CS27-16X16* 1" 1-5/16x12 1" 4.50 1-1/2" 16657V* HY16-16FJ90TL 141HY-16-16 16U-656L
i
JIC Seat & Thread Only. The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.

Shop Parts by Couplamatic Systems Inc
