CS37-4X8 Couplamatic VARI-CRIMP Coupling - DIN Light Universal Seat - Female Swivel - 1/4" Hose ID - M14x1.5 Thread (Old Part Number: 4C08V)

CS37-4X8 by Couplamatic | VARI-CRIMP Coupling | 1/4" Hose ID x M14x1.5 Thread DIN Light Universal Seat Female Swivel | Straight | Trivalent Zinc Plating | Replaces: 4C08V

Save $4.83 Save $4.83
$12.07
$12.07 - $12.07
$12.07
$7.24
$7.24 - $7.24
$7.24

Couplamatic Systems Inc.
Vari-Crimp Couplings - DIN Light 24° Seat - Male Solid
Specifications for Variant SKU: CS37-4X8 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): Straight
Ends Configuration: L08 Female DIN, 1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Vari-Crimp — Universal Crimp

CS37 Vari-Crimp — DIN Light Universal Seat, Female Swivel, Straight

CS37 is the DIN Light Universal Seat, Female Swivel, Straight configuration of the Vari-Crimp system, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, Hy-Plus I and III, 100R16/2SC, Dura-Hyd R16 and EX, 100R17, Dura-Hyd R17, 100R3 and 100R4 hose.

1

What are the main product features?
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
  • Fits virtually every crimp machine — the most universally crimpable coupling system in the line.
  • One system across the braid hose range — terminates one and two wire braid hose from 1/4" up.
  • For 1-1/2" and 2" 100R2 thin cover — use the GW Series spiral hose couplings instead.
2

Which sizes are available?

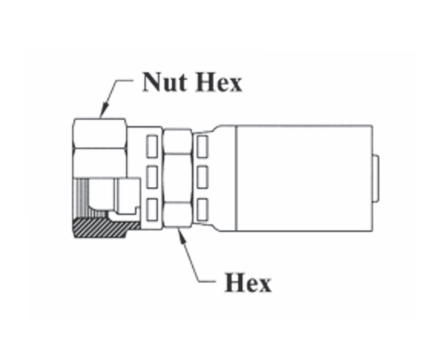

Part Number Hose ID Tube Size Thread Size Hex Size Nut Hex Previous Part Number
CS37-4X6 1/4" 6mm M12x1.5 9/16" 11/16" 4C06V
CS37-4X8 1/4" 8mm M14x1.5 9/16" 11/16" 4C08V
CS37-4X10 1/4" 10mm M16x1.5 9/16" 3/4" 4C10V
CS37-6X10 3/8" 10mm M16x1.5 11/16" 3/4" 6C10V
CS37-6X12 3/8" 12mm M18x1.5 11/16" 7/8" 6C12V
CS37-8X15 1/2" 15mm M22x1.5 7/8" 1-1/16" 8C15V
CS37-10X18 5/8" 18mm M26x1.5 15/16" 1-1/4" 10C18V
CS37-12X22 3/4" 22mm M30x2.0 1-1/8" 1-1/2" 12C22V
CS37-16X28 1" 28mm M36x2.0 1-3/8" 1-7/8" 16C28V
i
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully. The size chart above was rebuilt from the manufacturer catalogue: the supplied description carried the CS66 chart, which belongs to the DIN Light 24° Seat male solid couplings and is shown on that product’s own page.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
