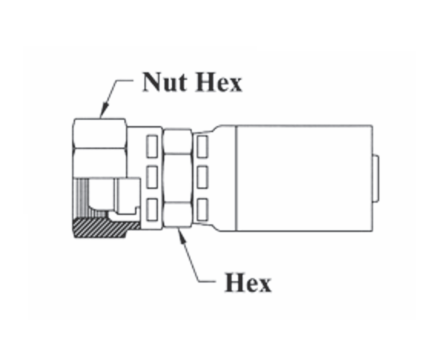

CS37-6X10 Couplamatic VARI-CRIMP Coupling - DIN Light Universal Seat - Female Swivel - 3/8" Hose ID - M16x1.5 Thread (Old Part Number: 6C10V)

CS37-6X10 by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x M16x1.5 Thread DIN Light Universal Seat Female Swivel | Straight | Trivalent Zinc Plating | Replaces: 6C10V

Save $4.99 Save $4.99
$12.48
$12.48 - $12.48
$12.48
$7.49
$7.49 - $7.49
$7.49

Couplamatic Systems Inc.
Vari-Crimp Couplings - DIN Light 24° Seat - Male Solid
Specifications for Variant SKU: CS37-6X10 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): Straight
Ends Configuration: L10 Female DIN, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
Part Number Hose ID Thread Size Tube OD Hex Size PreviousPart Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS66-4X8 1/4" M14x1.5 8mm 9/16" 4M08V HY04-08MZ14A 1D0HY-8-4 04U-08A
CS66-6X10 3/8" M16x1.5 10mm 3/4" 6M10V HY06-10MZ16A 1D0HY-10-6 06U-10A
CS66-6X12 3/8" M18x1.5 12mm 3/4" 6M12V HY06-12MZ18A 1D0HY-12-6 06U-12A
CS66-8X15 1/2" M22x1.5 15mm 7/8" 8M15V HY08-15MZ22A 1D0HY-15-8 08U-15A
CS66-10X18 5/8" M26x1.5 18mm 1-1/16" 10M18V - - 10U-18A
CS66-12X22 3/4" M30x2.0 22mm 1-1/4" 12M22V HY12-22MZ30B - 12U-22A

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
