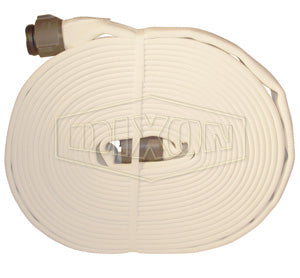

D815100RAS Dixon 800# Double Jacket All Polyester Fire Hose - Coupled - Female and Male NPSH Expansion Ring Couplings (Aluminum) - 1-1/2" Hose Size - 100ft Length

D815100RAS Dixon 800# Double Jacket All Polyester Fire Hose - Coupled - Female and Male NPSH Expansion Ring Couplings (Aluminum) - 1-1/2" Hose Size - 100ft Length

Save $50.07 Save $50.07
$450.61
$450.61 - $450.61
$450.61
$400.54
$400.54 - $400.54
$400.54

Dixon Fire Fittings
Fire Hose - 800# Double Jacket All Polyester Fire Hose - Coupled
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: D815100RAS Dixon
Series: Fire Hose
Hose Color(s): White/Off-White
Internal Diameter: 1.5in
Tubing Construction: EPDM
Cover Construction: Polyester Textile Braid
Ends Configuration: 1-1/2in Female NPSH, 1-1/2in Male NPSH
Features:
  • Outer construction: double jacket, all polyester.
  • Tube construction: EPDM rubber lining.
  • Proof pressure: 800 PSI.
  • Service test pressure: 400 PSI.
  • Working pressure: 360 PSI at ambient temperature 70°F (21°C).
Part Number Size Length Weight
(Lbs.)
Coupled with Female x Male NST(NH) Aluminum Expansion Ring Couplings - Rocker Lug
D815-25RAF 1-1/2" 25 ft 10.0000
D815-50RAF 1-1/2" 50 ft 16.9500
D815100RAF 1-1/2" 100 ft 31.1000
D825-25RAF 2-1/2" 25 ft 17.3650
D825-50RAF 2-1/2" 50 ft 29.2000
D825100RAF 2-1/2" 100 ft 70.3500
Coupled with Female x Male NST(NH) Brass Expansion Ring Couplings - Rocker Lug
D815-50RBF 1-1/2" 50 ft 17.3200
D815100RBF 1-1/2" 100 ft 31.8000
D825100RBF 2-1/2" 100 ft 60.0000
Coupled with Female x Male NPSH Aluminum Expansion Ring Couplings - Rocker Lug
D815-50RAS 1-1/2" 50 ft 16.4400
D815100RAS 1-1/2" 100 ft 32.6800
D825-50RAS 2-1/2" 50 ft 28.4000
D825100RAS 2-1/2" 100 ft 70.3500
