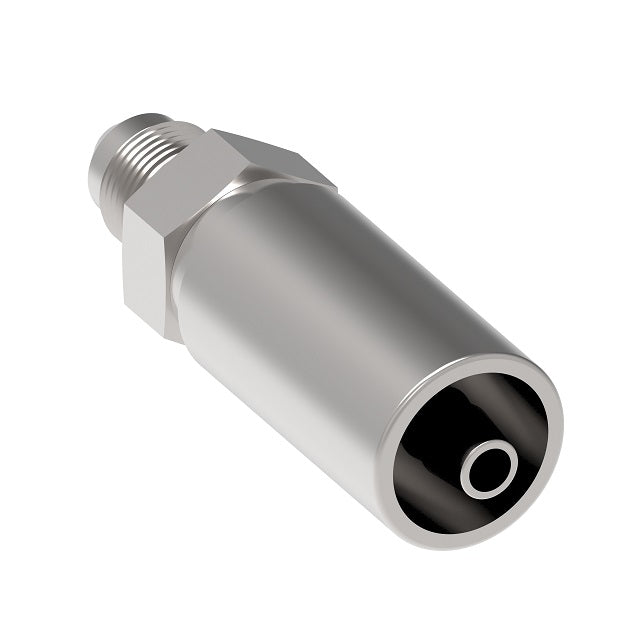

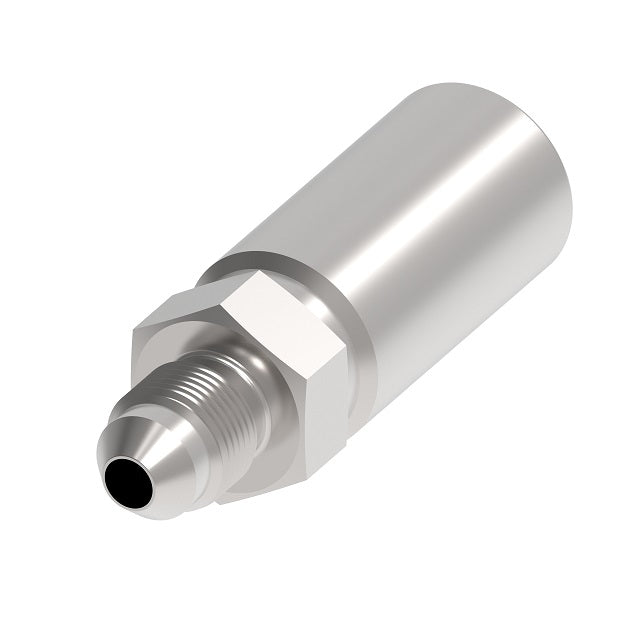

FC5807-0505S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -05 Male 37° JIC x -05 Hose Barb | Carbon Steel
FC5807-0505S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -05 Male 37° JIC x -05 Hose Barb | Carbon Steel
FC5807-0505S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -05 Male 37° JIC x -05 Hose Barb | Carbon Steel
FC5807-0505S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -05 Male 37° JIC x -05 Hose Barb | Carbon Steel

FC5807-0505S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -05 Male 37° JIC x -05 Hose Barb | Carbon Steel

$59.42 - $59.42
$59.42
$59.42 - $59.42
$59.42

Aeroquip by Danfoss
Thermoplastic Hose Crimp Fitting - Male 37° JIC - Straight
Specifications for Variant SKU: FC5807-0505S Danfoss
Brand: Aeroquip
Ends Configuration: 5/16in Male JIC, 5/16in Hose Barb
Material(s): Carbon Steel
Compatible with the following Series: 3130 Series  |   37AL Series  |   3740 Series  |   FC370 Series
Part Number
Carbon Steel		 Compatible
Hose ID		 Hose Dash
Size		 Inside
Diameter		 Outside
Diameter		 Hex Size
FC5807-0403S 0.25" -04 0.10" - 0.56"
FC5807-0404S 0.25" -04 0.15" 0.6875" 0.62"
FC5807-0504S 0.3125" -05 0.15" 0.6875" 0.62"
FC5807-0505S - -05 - - -
FC5807-0604S - -06 - - -
FC5807-0605S 0.375" -06 0.20" - 0.69"
FC5807-0606S - -06 - - -
FC5807-0806S 0.375" -06 0.28" - 0.81"
FC5807-0808S - -08 - - -
FC5807-1212S 0.75" -12 0.59" - 1.12"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
